3 Axles 45ft Flatbed Container Transport Semi Truck Trailer

Semi Trailer

3 Axles 45ft Flatbed Container Transport Semi Truck Trailer

Embracing the Future: A 20ft Semi Trailer Powered By Hydrogen

Ultraton 3 axles 45ft Flatbed Semi Truck Trailer is an extended model with nearly 14 meters for standard 45ft container can meet your different need on container transport. It can be modified according to customer's requirement.

  • Overview
  • Advantage
  • Application
  • Other notes

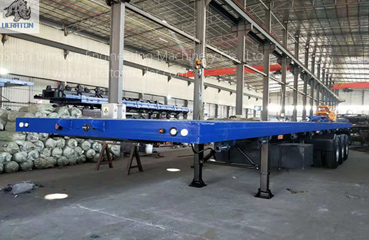

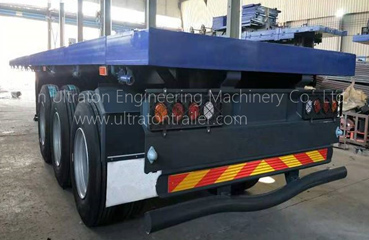

Overview of 3 Axles 45ft Flatbed Container Transport Semi Truck Trailer

Ultraton has 45 foot flatbed semi trailers for sale.

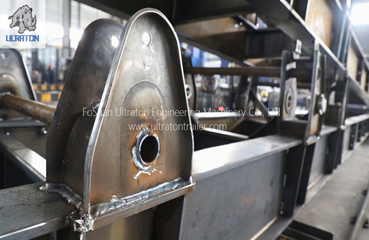

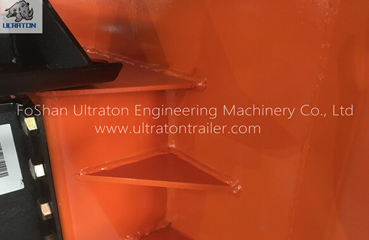

  • Heavy duty and extra durability designed for main I beam.

  • Flange and web width & thickness could be customized

  • Steel material we use is high strength low alloy steel Q345.

  • Specific auto hydraulic I beam straightening machine for more accuracy

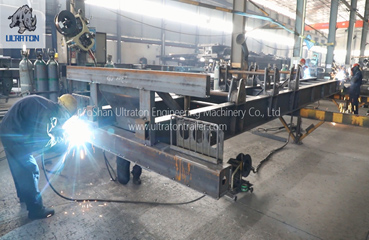

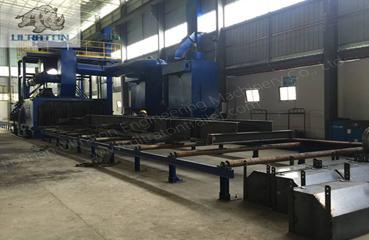

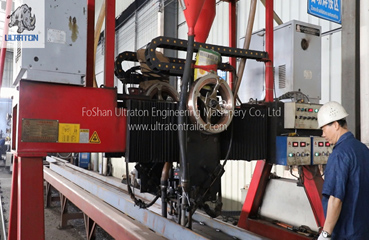

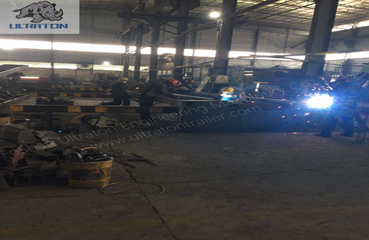

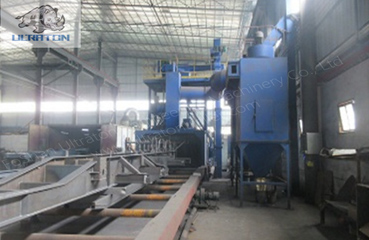

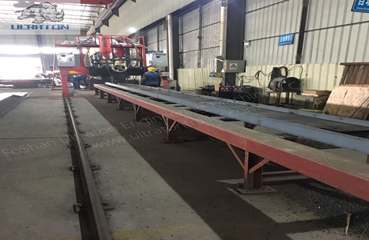

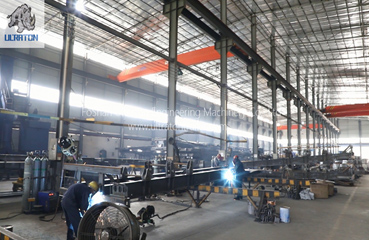

  • Welded by automatic submerged-arc process and skilled technicians. Complete chassis shot blasting to clean rust and remove welding stress

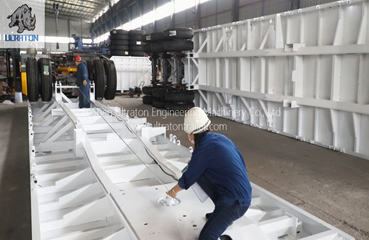

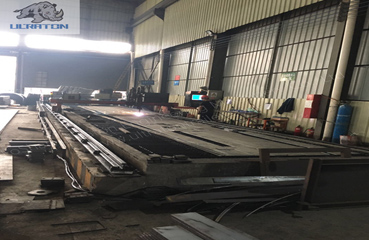

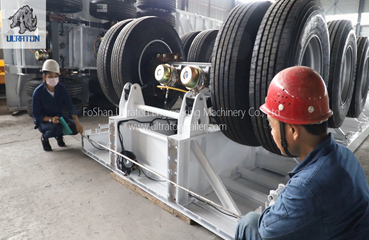

  • Assembled on air pressure assembly platform to ensure a stable and durable structure

  • Different thickness of diamond pattern floor plate is optional

  • Axles could be optional for German type or American type

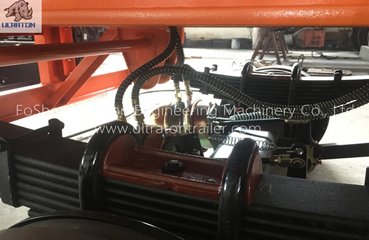

  • The suspension is optional for mechanical suspension, air suspension

  • Other core components are of superior quality and famous brands. Details are outlined below.


  • 3 Axles 45ft Flatbed Container Transport Semi Truck Trailer
  • 3 Axles 45ft Flatbed Container Transport Semi Truck Trailer
  • 3 Axles 45ft Flatbed Container Transport Semi Truck Trailer
  • 3 Axles 45ft Flatbed Container Transport Semi Truck Trailer
  • 3 Axles 45ft Flatbed Container Transport Semi Truck Trailer
  • 3 Axles 45ft Flatbed Container Transport Semi Truck Trailer

Advantage of 3 Axles 45ft Flatbed Container Transport Semi Truck Trailer

  1. Mature technology could be produced in large quantity at a competitive cost

  2. Lighter weight with high strength to transport container

  3. Shipped both by container, or RORO, bulk shipment.

  4. Nice and attractive appearance with our good workmanship

  5. Fast response and flexible service from our professional team

  6. Distinct location to get full range support on delivery and manufacturing

  7. Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry-free on after-sales service




Technical Parameter3 Axles 45ft Flatbed Container Transport Semi Truck Trailer
Tare Weight(KG)7000KG
Loading Capacity(KG)50000KG

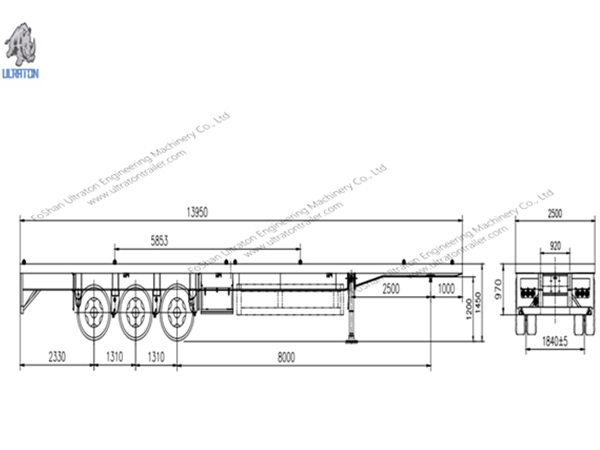

Dimension(mm)13950*2500*1500
Main BeamThe height of the beam is 500 mm, upper Flange is14mm, Lower Flange is 14mm, Web is 8mm.
Kingpin2''/ 3.5'' ,Welded/Bolt-In
Landing GearStandard 28Ton, FUWA Brand
AxleStandard FUWA Brand / ULTRATON Brand
Optional: BPW Brand or HuaJing Brand
SuspensionMechanical Suspension/Air Suspension, Standard FUWA Brand/ULTRATON Brand
Optional: BPW Brand or HuaJing Brand
Leaf SpringStandard FUWA Brand/ULTRATON Brand
90mm*16*7 or 90*16*8
Brake systemDual Air Brake (Drum) System, With Inter-Locking Device.WABCO Relay
Emergency Valve, OPTIONS: ABS.
Electrical System24 Volt LED Electrical System In Accordance To The Standard, With 7-Core Adaptor For Tractor.

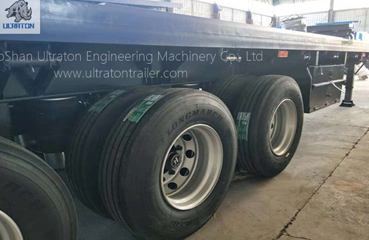

Tire12.00R22.5 Tubeless,12 Units
Rim9.0*22.5,12 Units
Shot Blasting & PaintingShot Blasting and Sanding Treatment. Two Coat Of Anti Corrosion Primer and
Two Coat Of Finish Painting
Mud GuardFabricated Mud Guard 6 nos
Tool Box1 Standard (The Tool Box Size Can Be Tailored To Suit Your Needs)
Container Locks4/8/12 Screw type
Spare Tire CarrierEquipped one set per chassis without a spare tire.
Front BaffleAccording To Customer’s Requirement
We Can Build The Trailer According To Customer's Design And Requirement.


Application of 3 Axles 45ft Flatbed Container Transport Semi Truck Trailer

Ultraton's 3 axles 45ft Flatbed Semi Truck Trailer could be used as a basic model to transport standard size of container in ports or from site to site on road. Suitable for logistic company, terminal ports, shipping lines, forwarders, truck manufacturer

  • 3 Axles 45ft Flatbed Container Transport Semi Truck Trailer
  • 3 Axles 45ft Flatbed Container Transport Semi Truck Trailer
  • 3 Axles 45ft Flatbed Container Transport Semi Truck Trailer
  • 3 Axles 45ft Flatbed Container Transport Semi Truck Trailer
  • 3 Axles 45ft Flatbed Container Transport Semi Truck Trailer
  • 3 Axles 45ft Flatbed Container Transport Semi Truck Trailer
  • 3 Axles 45ft Flatbed Container Transport Semi Truck Trailer
  • 3 Axles 45ft Flatbed Container Transport Semi Truck Trailer
  • 3 Axles 45ft Flatbed Container Transport Semi Truck Trailer
  • 3 Axles 45ft Flatbed Container Transport Semi Truck Trailer
  • 3 Axles 45ft Flatbed Container Transport Semi Truck Trailer

Other notes of 3 Axles 45ft Flatbed Container Transport Semi Truck Trailer

Pre-sales Services

  • Communicating with customers, analyze their needs.

  • Providing professional technical solutions withdrawing.

  • Offering customer quotes in FOB or CFR etc..

Payment: 50% TT advance before production, 50%TT before shipment is preferred


Delivery:

We are a long term partner with many famous shipping lines and forwarders i.e. COSCO, ONE, PIL, MSC, CMA, etc. We arrange

  • Provide the best feasible and effective packing way and timely manner.

  • Arrange shipping space booking, customs clearance, etc..

  • Make an appointment for product inspection if required.

  • Prepare necessary documents for customs clearance.

  • Track delivery status until you receive the cargo.


Shipping: Sea/ Railway/ Road transportation subject to your location


Packing: CBU or SKD in seaworthy Export Standard
