2 Axles 20ft Skeletal Container Transport Semi Truck Trailer
Ultron's 20 foot dual axle semi container trailer is the most commonly used and basic design. Extendable Chassis and Multipurpose Container Trailer can be modified according to the customer's requirement.
- Overview
- Advantage
- Application
- Other notes

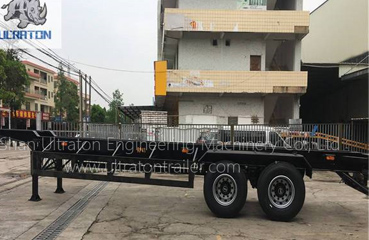

Overview of 2 Axles 20ft Skeletal Container Transport Semi Truck Trailer

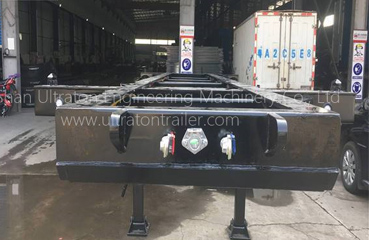

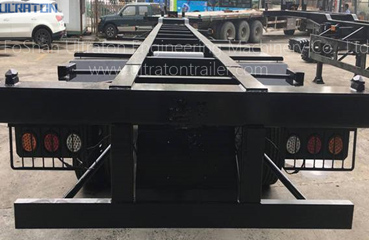

The frame is designed as a space frame welded structure, which is formed by welding two I-shaped longitudinal beams and a plurality of beams (C-shaped channel steel).
Design parameters strictly conform to National Safety Standard.
Steel material we use is high strength low alloy steel Q345.

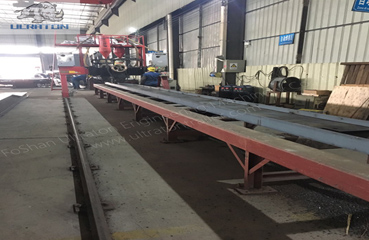

Specific auto hydraulic I beam straightening machine for more accuracy

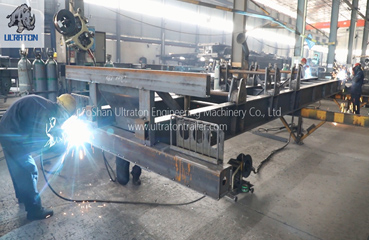

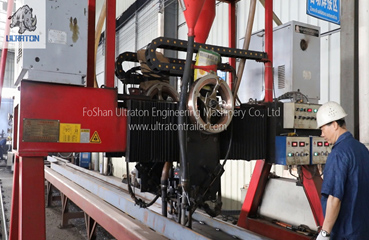

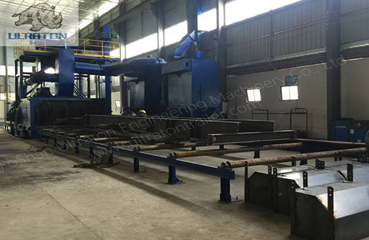

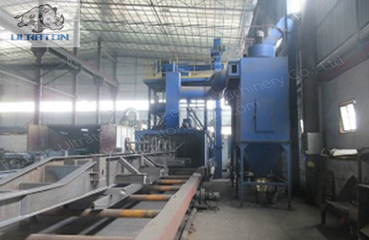

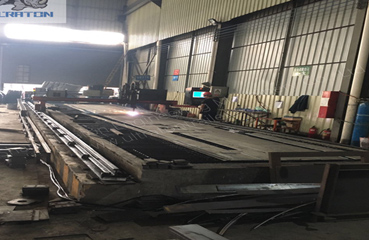

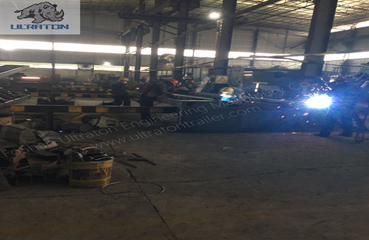

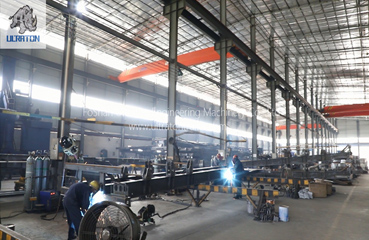

Welded by automatic submerged-arc process and skilled technicians. Complete chassis shot blasting to clean rust and remove welding stress

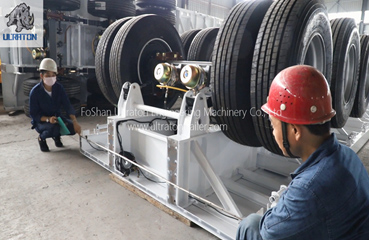

Assembled on air pressure assembly platform to ensure stable and durable structure
Superior quality and famous brand we use on specific different trailer parts. Details are outlined as below.
Advantage of 2 Axles 20ft Skeletal Container Transport Semi Truck Trailer
Mature technology, could be produced in large quantity at competitive cost
Lighter weight with high strength to transport container
Shipped both by container, or RORO, bulk shipment.
Perfect appearance with our good workmanship
Complete response and flexible service from our professional team
Distinct location to get full range support on delivery and manufacturing
Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service
| Technical Parameter | 2 Axles 20ft Skeleton Container Transport Semi Truck Trailer |
| Tare Weight(KG) | 3500KG |
| Loading Capacity(KG) | 40000KG |

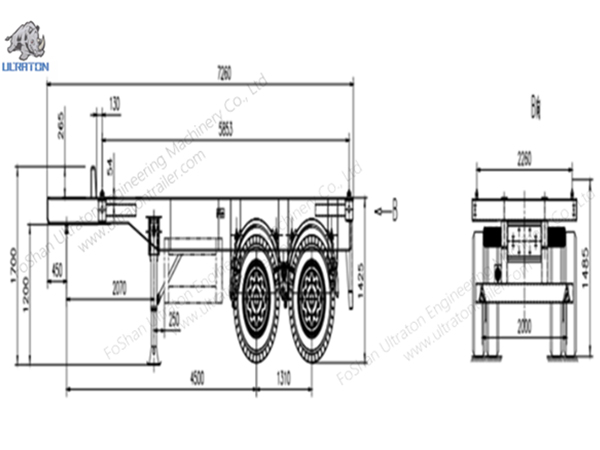

| Dimension(mm) | 7200*2480*1500 |
| Main Beam | The height of the beam is 500 mm, upper Flange is14mm, Lower Flange is 14mm,Web is 8mm. |
| Kingpin | 2''/ 3.5'',Welded/Bolt-In |
| Landing Gear | Standard 28Ton , FUWA Brand |

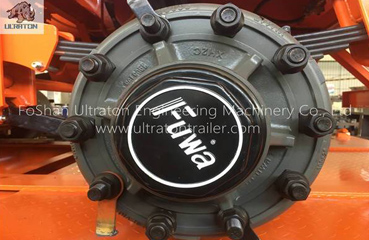

| Axle | Standard FUWA Brand / ULTRATON Brand |
| Optional : BPW Brand or HuaJing Brand | |
| Suspension | Mechanical Suspension/Air Suspension,Standard FUWA Brand/ULTRATON Brand |
| Optional : BPW Brand or HuaJing Brand | |
| Leaf Spring | Standard FUWA Brand/ULTRATON Brand |
| 90mm*16*7 or 90*16*8 | |

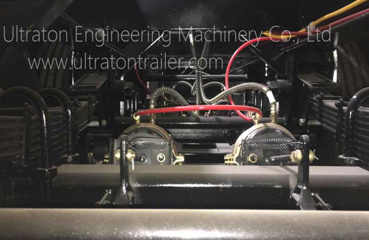

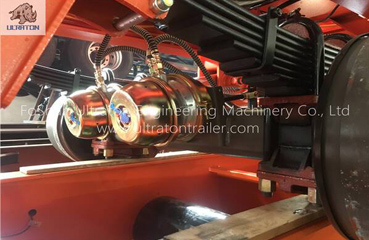

| Brake system | Dual Air Brake (Drum) System, With Inter-Locking Device.WABCO Relay |
| Emergency Valve,OPTIONS: ABS. | |
| Electrical System | 24 Volt LED Electrical System In Accordance To The Standard, With 7-Core Adaptor For Tractor. |
| Tire | 12.00R22.5 Tubeless,8 Units |
| Rim | 9.0*22.5,8 Units |

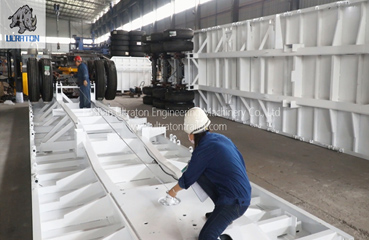

| Shot Blasting & Painting | Shot Blasting and Sanding Treatment . Two Coat Of Anti Corrosion Primer and |
| Two Coat Of Finish Painting | |
| Mud Guard | Fabricated Mud Guard 4 nos |
| Tool Box | 1 Standard (The Tool Box Size Can Be Tailored To Suit Your Needs) |
| Container Locks | 4/8/12 Screw type |
| Spare Tire Carrier | Equipped one sets per chassis without spare tire. |
| We Can Build The Trailer According To Customer’s Design And Requirement. | |
Application of 2 Axles 20ft Skeletal Container Transport Semi Truck Trailer
Ultraton's 2 Axles 20ft skel trailer could be used to transport standard size of container in ports or from site to site on road. Suitable for logistic company, terminal ports, shipping lines, forwarders, truck manufacturer
