3 axles 60 Ton Semi End Dump Trailer
Ultron's 3 Axles Semi End Dump Trailer is the widely used way to transport bulky and easily-pile-up materials with hydraulic cylinder front-mounted. It can be modified according to customer's requirement.
- Overview
- Advantage
- Application
- Other notes

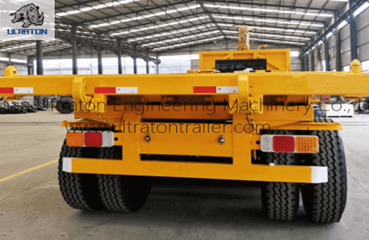

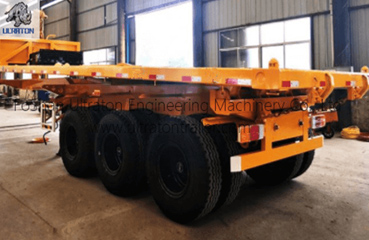

Overview of 3 axles 60 Ton Semi End Dump Trailer

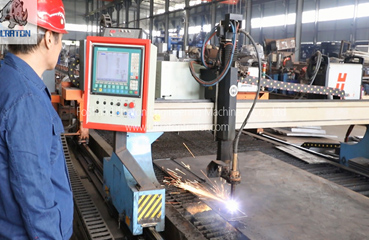

Scientific design with advanced computer-aided design software, finite element analysis of the frame according to vehicle load quality requirements
Flange and web width & thickness could be customized
Steel material we use is high strength low alloy steel Q345

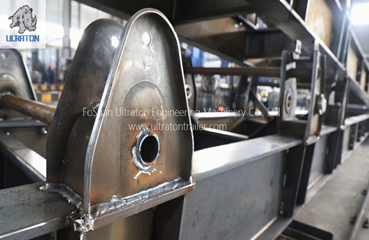

Three-axle balanced design is equipped with a mass balance block between the front and rear leaf springs

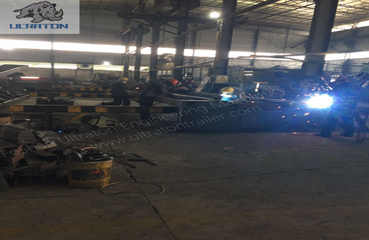

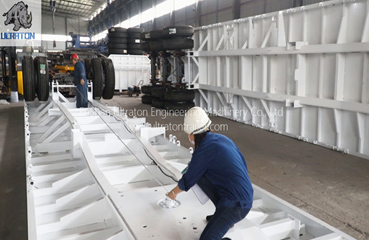

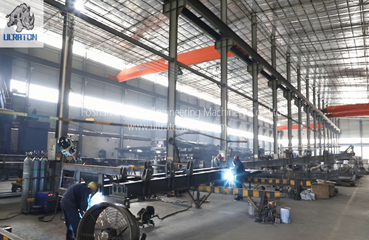

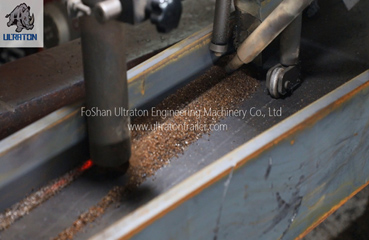

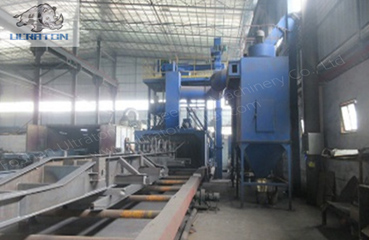

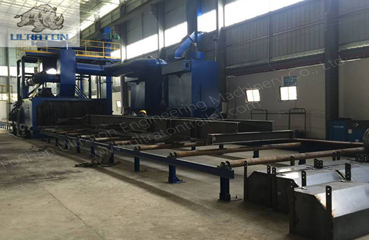

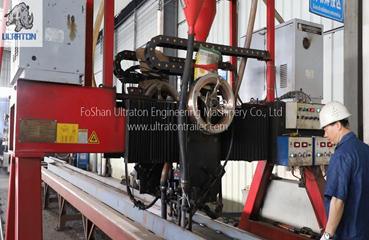

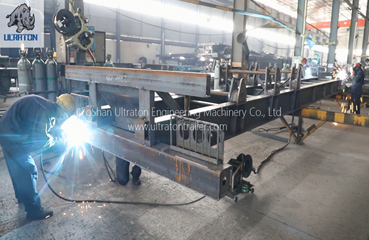

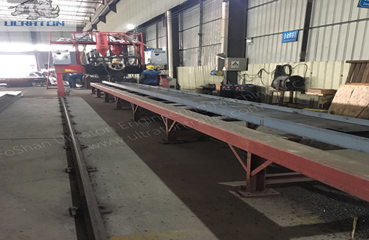

Welded by automatic submerged-arc process and skilled technicians. Complete chassis shot blasting to clean rust
Cargo boxes can be optional for ordinary rectangle cargo boxes, U-shaped boxes, mining buckets, and separate rear door cargo boxes
Angle steel could be added to the bottom plate to increase the rigidity and impact resistance of the cargo box
Superior quality and famous brand we use on specific different trailer parts especially hydraulic cylinder. Details are outlined as below
Advantage of 3 axles 60 Ton Semi End Dump Trailer
Different shape of cargo box is optional for your different need and occasion
Practical design with high strength to transport heavy duty goods
Shipped both by container, or RORO, bulk shipment.
Perfect appearance with our good workmanship
Fast response and flexible service from our professional team
Distinct location to get full range support on delivery and manufacturing
Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service
| Technical Parameter | Semi End Dump Trailer | ||
| Tare Weight(KG) | 7600KG | ||
| Loading Capacity(KG) | 60000KG | ||
| Dimension(mm) | 8000*2500*3400 | ||
| Main Beam | The height of the beam is 500 mm, upper Flange is14mm, Lower Flange is 14mm,Web is 8mm. | ||
| Kingpin | 2''/ 3.5'',Welded/Bolt-In | ||
| Landing Gear | Standard 28Ton , FUWA Brand | ||

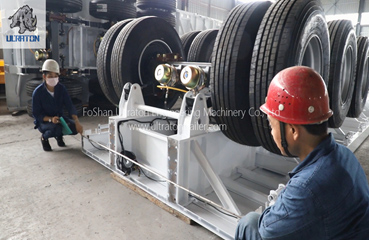

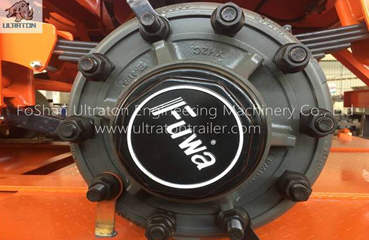

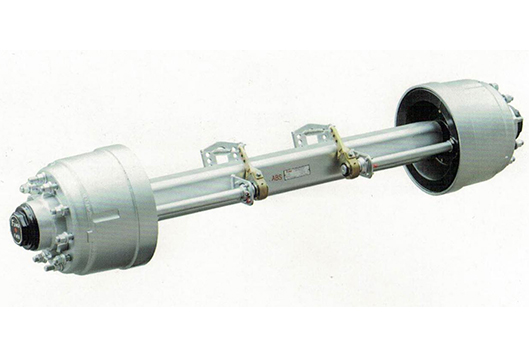

| Axle | Standard FUWA Brand / ULTRATON Brand | ||
| Optional : BPW Brand or HuaJing Brand | |||
| Suspension | Mechanical Suspension/Air Suspension,Standard FUWA Brand/ULTRATON Brand | ||
| Optional : BPW Brand or HuaJing Brand | |||
| Leaf Spring | Standard FUWA Brand/ULTRATON Brand | ||
| 90mm*16*7 or 90*16*8 | |||

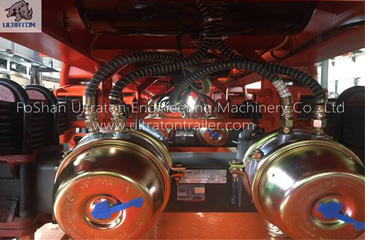

| Brake system | Dual Air Brake (Drum) System, With Inter-Locking Device.WABCO Relay | ||
| Emergency Valve,OPTIONS: ABS. | |||
| Electrical System | 24 Volt LED Electrical System In Accordance To The Standard, With 7-Core Adaptor For Tractor. | ||
| Tire | 12.00R22.5 Tubeless,12 Units | ||
| Rim | 9.0*22.5,12 Units | ||
| Shot Blasting & Painting | Shot Blasting and Sanding Treatment . Two Coat Of Anti Corrosion Primer and | ||
| Two Coat Of Finish Painting | |||
| Mud Guard | Fabricated Mud Guard 6 nos | ||
| Tool Box | 1 Standard (The Tool Box Size Can Be Tailored To Suit Your Needs) | ||
| Container Locks | 4 Screw type | ||
| Spare Tire Carrier | Equipped one sets per chassis without spare tire. | ||
| Front Baffle | According To Customer’s Requirement | ||
| We Can Build The Trailer According To Customer’s Design And Requirement. | |||
Application of 3 axles 60 Ton Semi End Dump Trailer
Ultraton's 3 axles Semi End Dump Trailer could be used to transport sand, stone, coal, soil, garbage, food and agricultural products.
