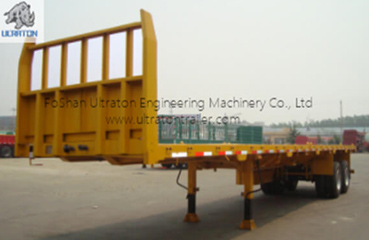

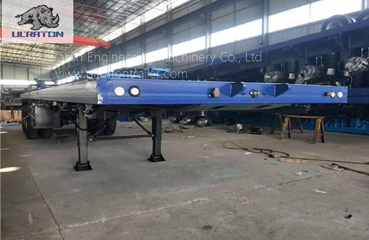

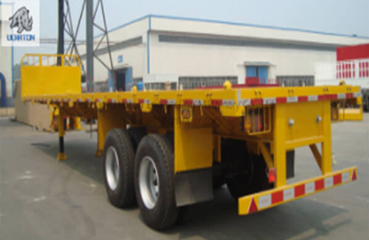

2 Axles 30T Flatbed Container Transport Semi Truck Trailer
Ultron's 2 axles 30T Flatbed Semi-Trailer for standard size of the container can meet your different needs on container transport. It can be modified according to customer's requirement.
- Overview
- Advantage
- Application
- Other notes
Overview of 2 Axles 30T Flatbed Container Transport Semi Truck Trailer
Scientific design with advanced computer-aided design software, finite element analysis of the frame according to vehicle load quality requirements
Flange and web width & thickness could be customized
Steel material we use is high strength low alloy steel Q345.

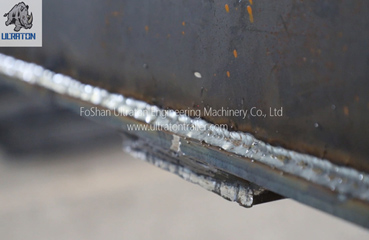

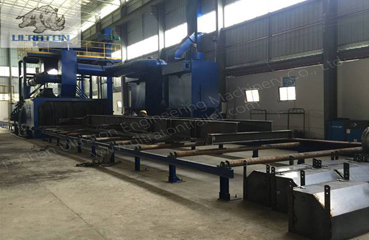

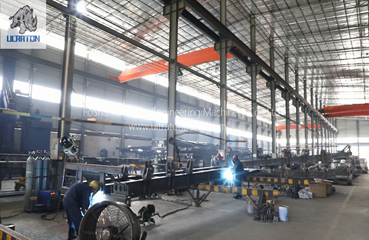

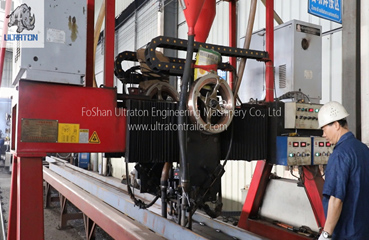

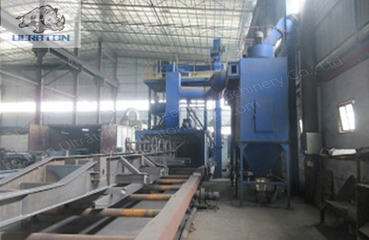

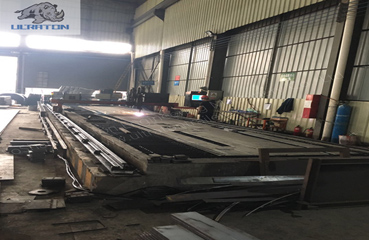

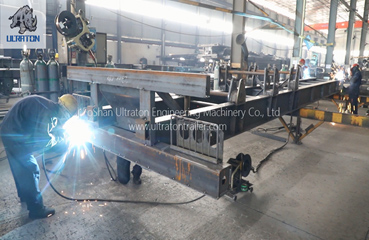

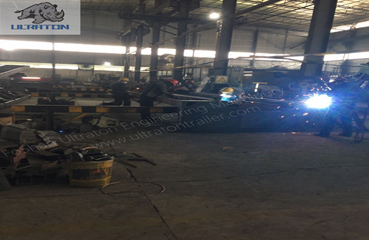

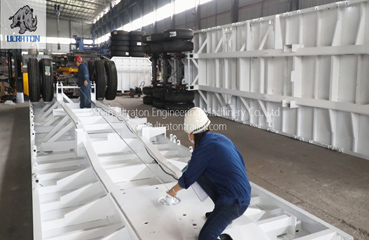

Welded by automatic submerged-arc process. Complete chassis shot blasting to clean rust and remove welding stress
Different thickness of diamond pattern floor plate is optional
Axles could be optional for German type or American type

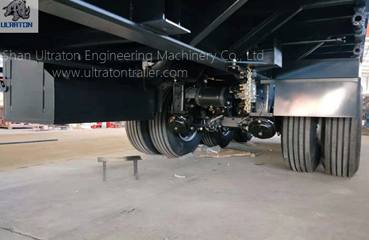

Suspension is optional for mechanical suspension, air suspension
Advantage of 2 Axles 30T Flatbed Container Transport Semi Truck Trailer
Mature technology, could be produced in large quantity at competitive cost
Lighter weight with high strength to transport container
Shipped both by container, or RORO, bulk shipment.
Nice and attractive appearance with our good workmanship
Fast response and flexible service from our professional team
Distinct location to get full range support on delivery and manufacturing
Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service
| Technical Parameter | 2 Axles 30T Flatbed Container Transport Semi Truck Trailer |
| Tare Weight(KG) | 4200KG |
| Loading Capacity(KG) | 30000KG |
| Dimension(mm) | 9000*2500*1500 |
| Main Beam | The height of the beam is 500 mm, upper Flange is14mm, Lower Flange is 14mm,Web is 8mm. |
| Kingpin | 2'' / 3.5'' ,Welded/Bolt-In |
| Landing Gear | Standard 28Ton , FUWA Brand |
| Axle | Standard FUWA Brand / ULTRATON Brand |
| Optional : BPW Brand or HuaJing Brand | |
| Suspension | Mechanical Suspension/Air Suspension,Standard FUWA Brand/ULTRATON Brand |
| Optional : BPW Brand or HuaJing Brand | |
| Leaf Spring | Standard FUWA Brand/ULTRATON Brand |
| 90mm*16*7 or 90*16*8 | |

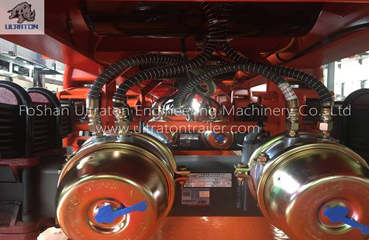

| Brake system | Dual Air Brake (Drum) System, With Inter-Locking Device.WABCO Relay |
| Emergency Valve,OPTIONS: ABS. | |
| Electrical System | 24 Volt LED Electrical System In Accordance To The Standard, With 7-Core Adaptor For Tractor. |
| Tire | 12.00R22.5 Tubeless,8 Units |
| Rim | 9.0*22.5,8 Units |
| Shot Blasting & Painting | Shot Blasting and Sanding Treatment . Two Coat Of Anti Corrosion Primer and |
| Two Coat Of Finish Painting | |
| Mud Guard | Fabricated Mud Guard 4 nos |
| Tool Box | 1 Standard (The Tool Box Size Can Be Tailored To Suit Your Needs) |
| Container Locks | 4/8/12 Screw type |
| Spare Tire Carrier | Equipped one sets per chassis without spare tire. |
| Front Baffle | According To Customer’s Requirement |
| We Can Build The Trailer According To Customer’s Design And Requirement. | |
Application of 2 Axles 30T Flatbed Container Transport Semi Truck Trailer
Ultraton's 2 axles 30T Flatbed Semi Trailer could be used as a basic model to transport standard size of container in ports or from site to site on road. Suitable for logistic company, terminal ports, shipping lines, forwarders, truck manufacturer
