40T Terminal Port Container Truck Semi Trailer
Ultraton's 40T Container Terminal Semi Trailer is an ideal and practical way to handle containers by Low-speed tractors in specific areas such as terminals or container diversion centers efficiently. It can be modified according to customer's requirement.
- Overview
- Advantage
- Application
- Other notes

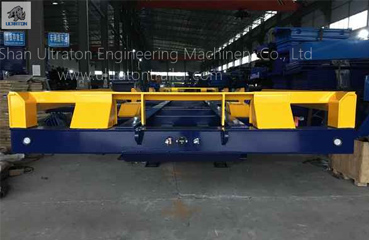

Overview of 40T Terminal Port Container Truck Semi Trailer

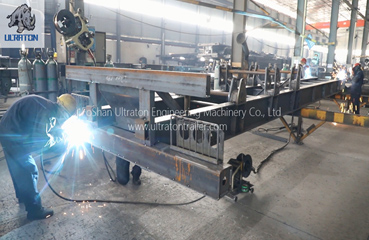

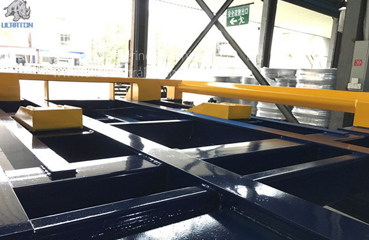

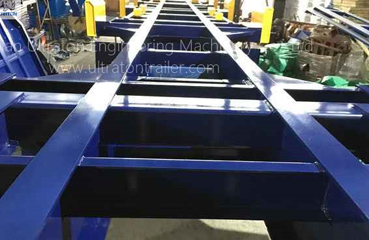

Space frame welded structure, which is formed by welding two I-shaped longitudinal beams and a plurality of beams (C-shaped channel steel)..
Steel material we choose to use is high strength steel Q345.

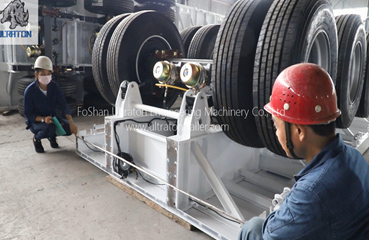

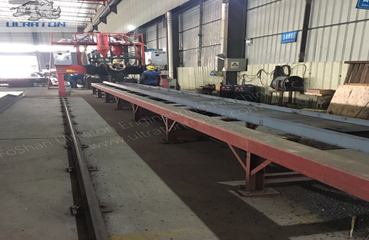

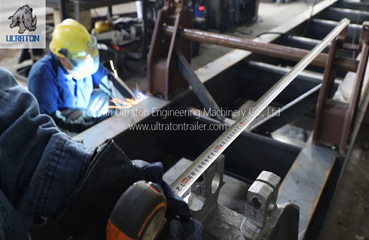

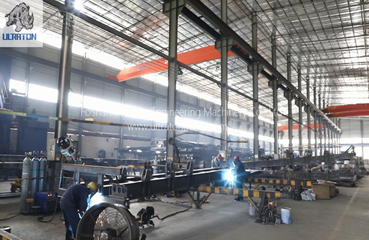

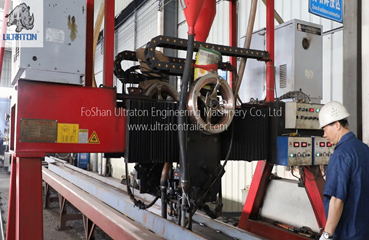

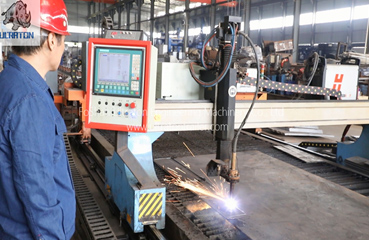

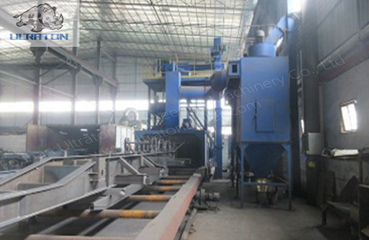

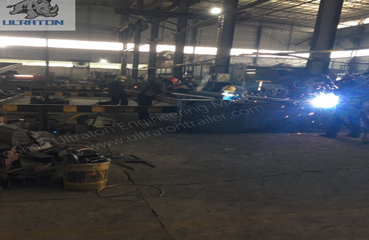

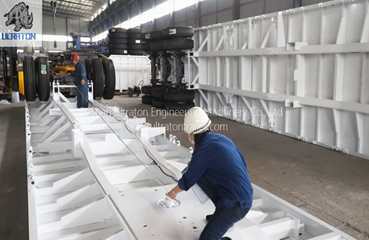

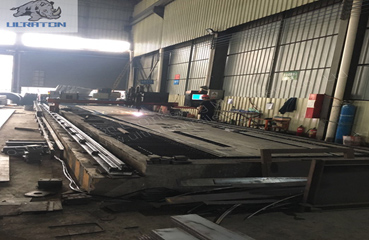

Whole body is welded by advanced automatic submerged-arc process and skilled technicians. Complete chassis shot blasting to clean rust and remove welding stress.
Superior quality and famous brand we use on specific different trailer parts. Details are outlined as below.
Advantage of 40T Terminal Port Container Truck Semi Trailer
Mature technology, could be produced in large quantity at competitive cost
Lighter weight with high strength to transport container
Shipped both by container, or RORO, bulk shipment.
Nice and attractive appearance with our good workmanship
Fast response and flexible service from our professional team
Distinct location to get full range support on delivery and manufacturing
Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service
| Technical Parameter | 40T Terminal Port Container Truck Semi Trailer |
| Tare Weight(KG) | 5700KG |
| Loading Capacity(KG) | 40000KG |

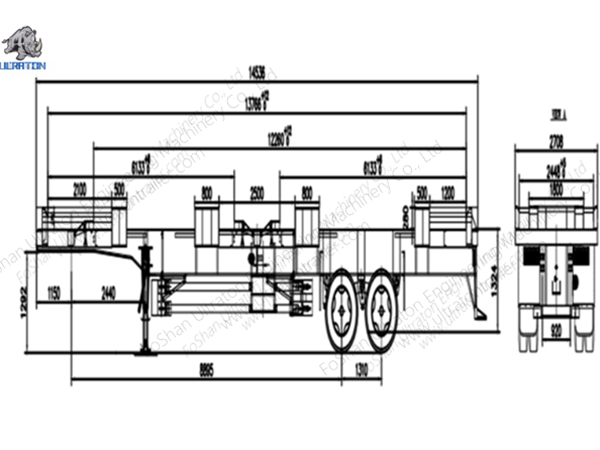

| Dimension(mm) | 13950*2500*2760 |
| Main Beam | The height of the beam is 500 mm, upper Flange is14mm, Lower Flange is 14mm,Web is 8mm. |
| Kingpin | 2''/ 3.5'',Welded/Bolt-In |
| Landing Gear | Standard 28Ton , FUWA Brand |

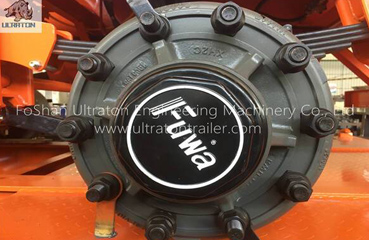

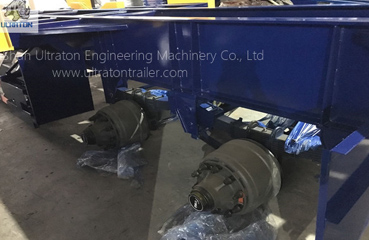

| Axle | Standard FUWA Brand / ULTRATON Brand |
| Optional : BPW Brand or HuaJing Brand | |
| Suspension | Mechanical Suspension/Air Suspension,Standard FUWA Brand/ULTRATON Brand |
| Optional : BPW Brand or HuaJing Brand | |
| Leaf Spring | Standard FUWA Brand/ULTRATON Brand |
| 90mm*16*7 or 90*16*8 | |
| Brake system | Dual Air Brake (Drum) System, With Inter-Locking Device.WABCO Relay |
| Emergency Valve,OPTIONS: ABS. | |
| Electrical System | 24 Volt LED Electrical System In Accordance To The Standard, With 7-Core Adaptor For Tractor. |
| Tire | 12.00R22.5 Tubeless,8 Units |
| Rim | 9.0*22.5,8 Units |
| Shot Blasting & Painting | Shot Blasting and Sanding Treatment . Two Coat Of Anti Corrosion Primer and |
| Two Coat Of Finish Painting | |
| Mud Guard | Fabricated Mud Guard 4 nos |
| Tool Box | 1 Standard (The Tool Box Size Can Be Tailored To Suit Your Needs) |
| Spare Tire Carrier | Equipped one sets per chassis without spare tire. |
| Flapper | According To Customer’s Requirement |

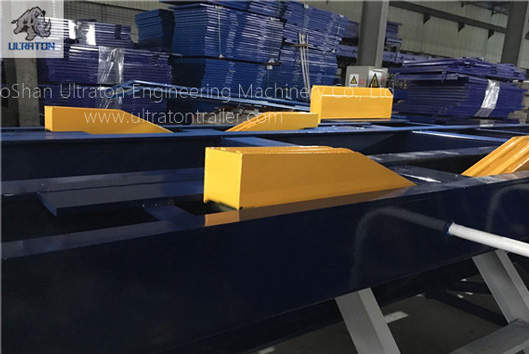

| Guide Block | According To Customer’s Requirement |
| We Can Build The Trailer According To Customer’s Design And Requirement. | |
Application of 40T Terminal Port Container Truck Semi Trailer
Ultraton's 40T Container Terminal Semi Trailer is one kind of modified Skeleton Semi Trailer which is specifically worked in terminal port for load and lifting containers precisely and quickly. Especially suitable for terminal ports, shipping lines.
