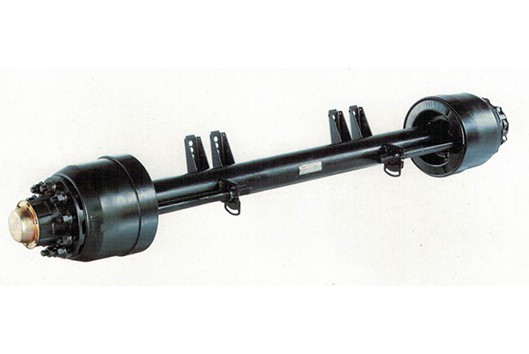

Overview of FUWA low loader series axle

Integrated one-piece design axle beam with special heat treatment made by low carbon alloy steel 20Mn2.
More reasonable design of spindle with taper shape.
Spider camshaft and anchor pin bores are machined with reference to the spindle after the welding operation.
High performance non-asbestos brake linings of good quality and service life.
Improved seals at camshafts for better and safer grease lubricant.
Axle beam is available with round 127 diameter.
Loading capacity is available with 11.5T, 12.5T.
Track length and camshaft length could be customized.
Optional for automatic slack adjuster and ABS system.

Advantage of FUWA low loader series axle

Mature technology and workmanship offers more stability, greater capacity and longer service life.
Special processed spindle journals provide superior fatigue capability.
Accurate machining process increases stability and braking performance.
Strictly selected sealing parts protect braking safety.
Unique design can meet complicated transport condition.
Good performance on braking good for service life of tire.
Distinct location to get full range support on delivery and manufacturing.
Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service.

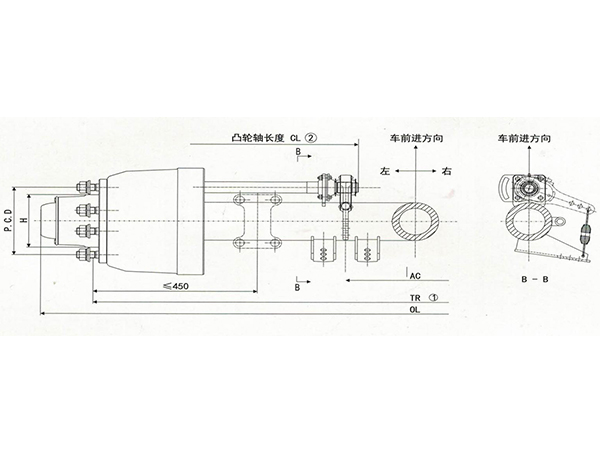

Axle Type

105 (km/h)

Max.Capacity(KG)

‘S’ Cam Brake

Series

ø *

Width

(mm)

Track TR (mm)

Spline No.

Axle Beam (mm)

Center Distance Of Chamber

Wheel Fixing

Total Length (mm)

Recommended Wheel

New Model

Old Model

CL (mm)

AC (mm)

Studs (mm)

P.C.D. (mm)

Ø H (mm)

FN2091DP04AA

F2091/DIN

11,500

S 311*190

1816

10

○127

524

382

10*M20*1.5 ISO

/10*M22*1.5 DIN

225

176

~2110

6.5-15

17.5*6.75

FN2091DA04AA

11,500

S 311*190

1816

10/28

○127

524

382

10*M22*1.5 ISO

225

176

~2110

6.5-15

17.5*6.75

FN2098DP04AA

F2098

11,500

S 311*190

1816

10

○127

524

382

8*M22*1.5 ISO

275

220.8

~2128

19.5*6.75

FN2098DA04AA

11,500

S 311*190

1816

10/28

○127

524

382

8*M22*1.5 ISO

275

220.8

~2128

19.5*6.75

FN2099DH06AA

11,500

S 381*220

1850

10/28

○127

618

250

8*M22*1.5 ISO

275

220.8

~2146

19.5*6.75

FN2097DH06AA

11,500

S 381*220

1850

10/28

○127

618

250

10*M22*1.5 ISO

285.75

219.8

~2146

7.5-20

FE2092DP04AA

G2091

11,500

S 311*190

1820

10

○127

524

389

10*M22*1.5 ISO

225

176

~2109

6.5-15

17.5*6.75

FH2093DP04AA

F2093

11,500

S 311*190

1850

10

○127

524

424

10*M22*1.5 ISO

225

176

~2138

6.5-15

17.5*6.75

Note: Axle Head: FN Inner: HM218248/10 Outer: HM212049/10

Axle Head: FH Inner: HM218248/10 Outer: HM218248/10

Axle Head: FE Inner: HM218248/10 Outer: 33213

Application of FUWA low loader series axle

FUWA Low Loader Series Axle is applicable on Low Loader like Vehicle Transport Semi Trailer.

Other notes of FUWA low loader series axle

Pre-sales Services

Communicating with customers, analyze their needs.
Providing professional technical solutions with drawing.
Offering customer quote in FOB or CFR etc .

Payment: 50% TT advance before production, 50%TT before shipment is preferred

Delivery:

We are long term partner with many famous shipping lines and forwarders i.e. COSCO, ONE, PIL, MSC, CMA, etc. We arrange

Provide best feasible and effective packing way and timely manner.
Arrange shipping space booking, customs clearance, etc.
Make an appointment for product inspection if required.
Prepare necessary documents for customs clearance.
Track delivery status until you receive the cargo.

Shipping: Sea/ Railway/ Road transportation subject to your location

Packing: CBU or SKD in seaworthy Export Standard
