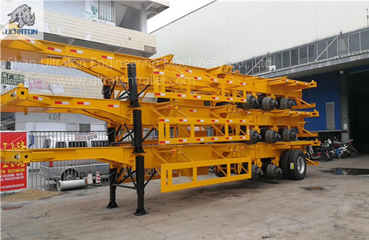

3 Axles 40ft Skeletal Container Transport Semi Truck Trailer
As an enhancement, Ultraton's 3 Axles 40ft Skeleton Semi Trailer equipped with 3 pieces of semi-trailer axles is very workable in container transport. Extendable Chassis and Multipurpose Container Trailer can be modified according to the customer's requirement.
- Overview
- Advantage
- Application
- Other notes

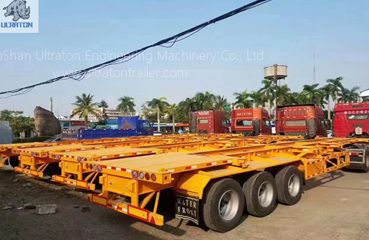

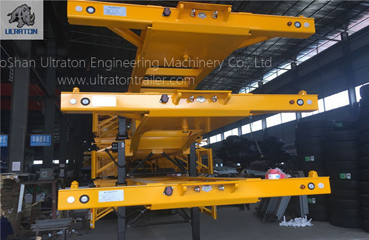

Overview of 3 Axles 40ft Skeletal Container Transport Semi Truck Trailer
Heavy duty and extra durability designed for main I beam
Flange and web width & thickness could be customized
Steel material we use is high strength low alloy steel Q345

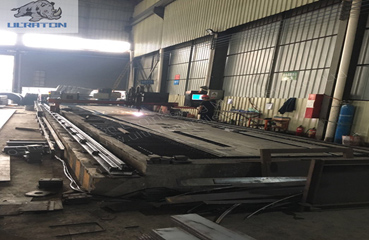

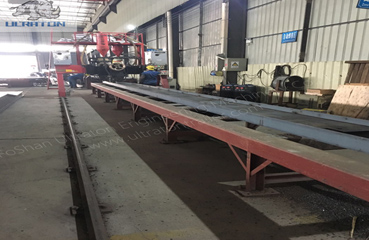

Specific auto hydraulic I beam straightening machine for more accuracy

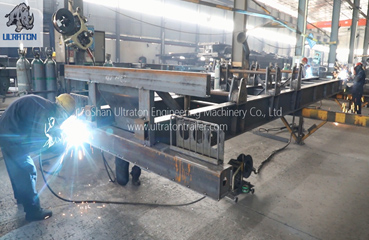

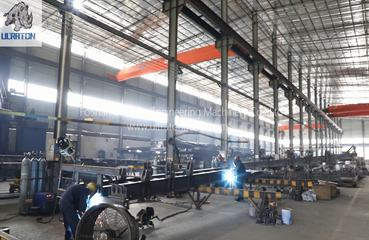

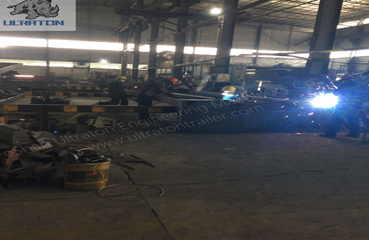

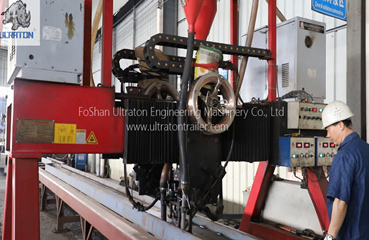

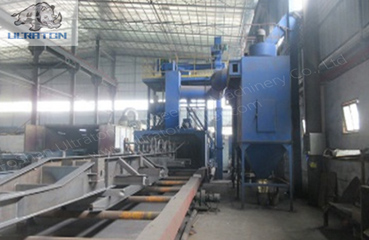

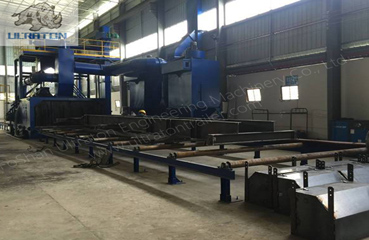

Welded by automatic submerged-arc process and skilled technicians. Complete chassis shot blasting to clean rust and remove welding stress

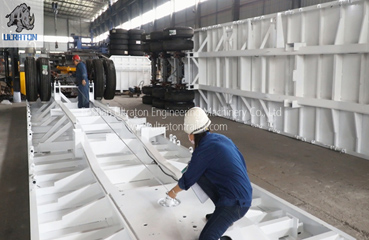

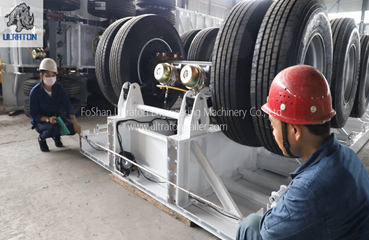

Assembled on air pressure assembly platform to ensure stable and durable structure
Superior quality and famous brand we use on specific different trailer parts. Details are outlined as below
Advantage of 3 Axles 40ft Skeletal Container Transport Semi Truck Trailer
Mature technology, could be produced in large quantity at competitive cost
Lighter weight with high strength to transport container
Packing solution in CKD/ SKD/CBU is optional according to different project

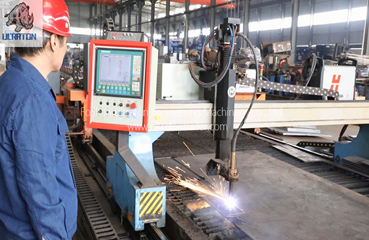

Advanced manufacturing equipment and workmanship to ensure outstanding performance
Complete and flexible service from our professional team
Distinct location to get full range support on delivery and manufacturing
Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service
| Technical Parameter | 3 Axles 40ft Skeleton Container Transport Semi Truck Trailer |
| Tare Weight(KG) | 5800KG |
| Loading Capacity(KG) | 50000KG |

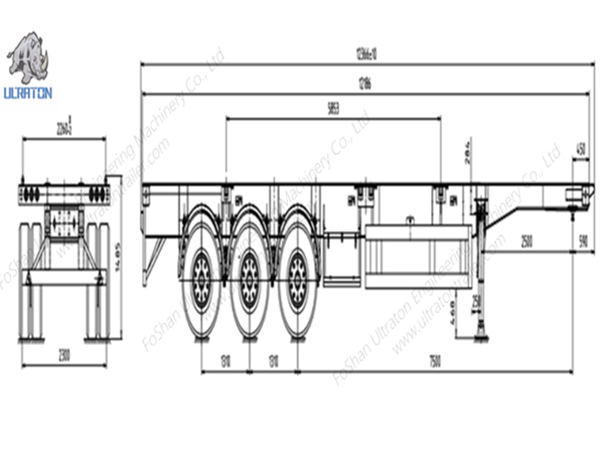

| Dimension(mm) | 12400*2500*1500 |
| Main Beam | The height of the beam is 500 mm, upper Flange is14mm, Lower Flange is 14mm,Web is 8mm. |

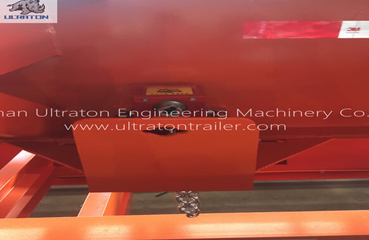

| Kingpin | 2''/ 3.5'',Welded/Bolt-In |
| Landing Gear | Standard 28Ton , FUWA Brand |
| Axle | Standard FUWA Brand / ULTRATON Brand |
| Optional : BPW Brand or HuaJing Brand | |

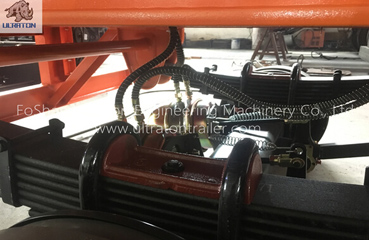

| Suspension | Mechanical Suspension/Air Suspension,Standard FUWA Brand/ULTRATON Brand |
| Optional : BPW Brand or HuaJing Brand | |
| Leaf Spring | Standard FUWA Brand/ULTRATON Brand |
| 90mm*16*7 or 90*16*8 | |

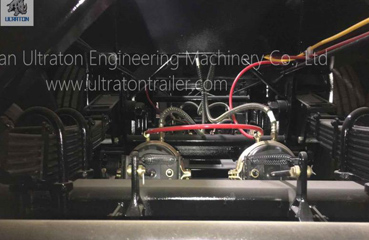

| Brake system | Dual Air Brake (Drum) System, With Inter-Locking Device.WABCO Relay |
| Emergency Valve,OPTIONS: ABS. | |
| Electrical System | 24 Volt LED Electrical System In Accordance To The Standard, With 7-Core Adaptor For Tractor. |
| Tire | 12.00R22.5 Tubeless,12 Units |
| Rim | 9.0*22.5,12 Units |
| Shot Blasting & Painting | Shot Blasting and Sanding Treatment . Two Coat Of Anti Corrosion Primer and |
| Two Coat Of Finish Painting | |
| Mud Guard | Fabricated Mud Guard 6 nos |
| Tool Box | 1 Standard (The Tool Box Size Can Be Tailored To Suit Your Needs) |
| Container Locks | 4/8/12 Screw type |
| Spare Tire Carrier | Equipped one sets per chassis without spare tire. |
| We Can Build The Trailer According To Customer’s Design And Requirement. | |
Application of 3 Axles 40ft Skeletal Container Transport Semi Truck Trailer
Ultraton's 3 axles 40ft Skeleton Semi Trailer could be used to transport standard sizes of container in ports or from site to site on road. Suitable for logistic company, terminal ports, shipping lines, forwarders, truck manufacturer
