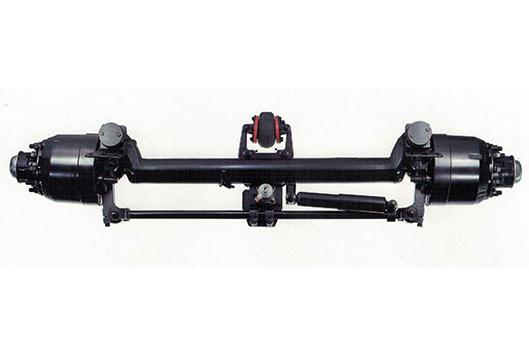

Overview of FUWA Self-steer series axle

Integrated one-piece design axle beam with special heat treatment made by low carbon alloy steel 20Mn2.
Spider camshaft and anchor pin bores are machined with reference to the spindle after the welding operation.
Reasonable design of spindle processed by heat hardening.
High performance non-asbestos brake linings of good quality and service life.
Air bag stabilizing device through the air as a damping medium set a stable torque.
Improved seals at camshafts for better and safer grease lubricant.
Axle beam is available with round 127mm diameter, round 128mm and square 150mm type.
Track length and camshaft length could be customized.
Loading capacity is available with 11.5T to 16T.
Braking system is optional for disc brake type.

Advantage of FUWA Self-steer series axle

Strictly selected raw material and parts ensure more stability and greater capacity.
Special processed spindle with induction hardened bearing journals provide superior fatigue capability.
Accurate machining process increases stability and braking performance.
Strictly selected sealing parts protect braking safety.
Complete quality control procedure including metallographical examination, pressure reversal testing, magnetic flaw detecting, etc can ensure good quality.
Special design guarantee the stability of driving wheels.
Improve the steering performance and passing performance of multi-axle semi-trailers and reduce tire wear.
Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service.

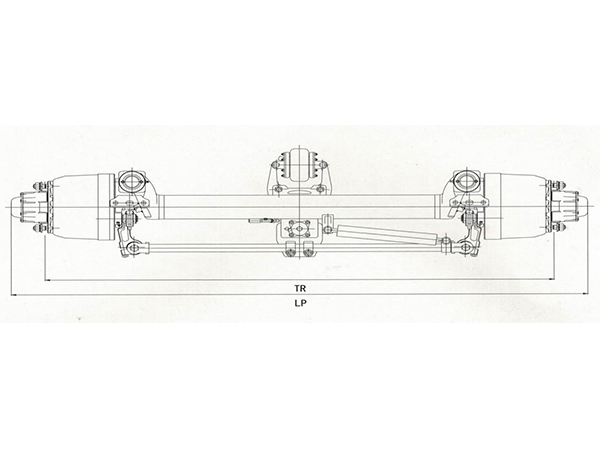

Axle Type

105(km/h) Max. Capacity (kg)

'S' Cam Brake Series Ø * Width(mm)

Track TR (mm)

Spring Seat Installation

Axle Beam (mm)

Center Distance Of Chamber

Spline

Wheel Fixing

Total Length

Recommended Wheel

New Model

LM

(mm/Inch)

CL (mm)

AC (mm)

Stands (mm)

P.C.D. (mm)

ØH (mm)

FN5091DP01AA

11,690/25,800

S 12.25*7.5

2190/86.2

597/23.5

○127

175

1462

10

10*M22*1.5 ISO

225

176

~2485

6.5-15/17.5*6.75

FN5007GP01AA

11,980/26,400

S 16.5*7

2500/98.4

597/23.5

○127

175

1827

10

10*M22*1.5 ISO

335

281

~2790

7.5-20/22.5*7.5

FN5007AM01AA

11,500/25,000

S 16.5*7

2500/98.4

597/23.5

○127

175

1827

10

10*M22*1.5 ISO

335

281

~2790

7.5-20/22.5*7.5

FN5008GP01AA

11,980/26,400

S 16.5*7

2500/98.4

597/23.5

○127

175

1827

10

10*M22*1.5 ISO

285.75

221

~2790

7.5-20/22.5*7.5

FN5008AM01AA

11,500/25,000

S 16.5*7

2500/98.5

597/23.6

○128

175

1827

10

10*M22*1.6 ISO

285.75

221

~2790

7.5-20/22.5*7.5

FP5401XE01AA

13,000/28,660

S 16.5*7

1850/72.8

640/25.2

□150

317

888

37

10*M22*1.5 ISO

335

281

~2220

7.5-20/22.5*7.5

FB5462XE02AA

16,000/35,270

S 16.5*8.625

1850/72.8

640/25.2

□150

317

888

37

10*M22*1.5 ISO

335

281

~2220

7.5-20/22.5*7.5

Note: Axle Head: FP Inner: HM518445/10 Outer: HM518445/10

Axle Head: FN Inner: HM218248/10 Outer: HM212049/11

Application of FUWA Self-steer series axle

FUWA Self-steer Series Axle is recommended on multi-axle Semi Trailer developing in the direction of large tonnage and high speed.
