3 Axles 40 Ton Side Wall Semi Trailer
Ultraton's 3 Axles 40T Side Wall Semi Trailer is your good partner to transport dry goods and bulk cargo on road. Different design on stake and board can be modified according to customer's requirement.
- Overview
- Advantage
- Application
- Other notes

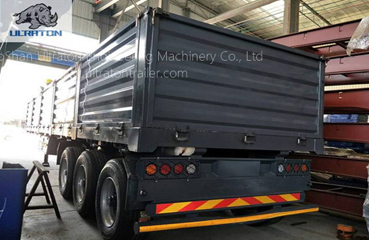

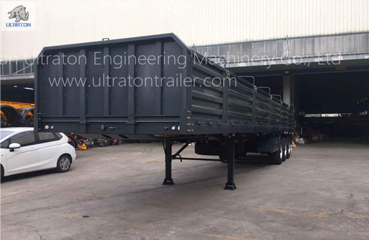

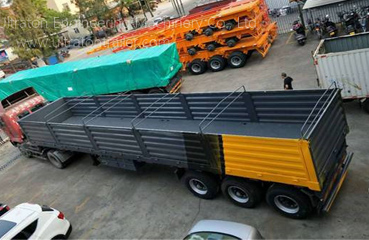

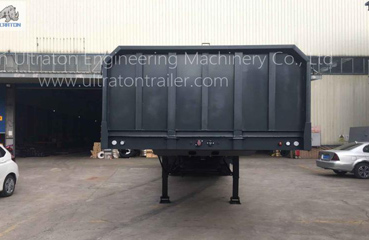

Overview of 3 Axles 40 Ton Side Wall Semi Trailer

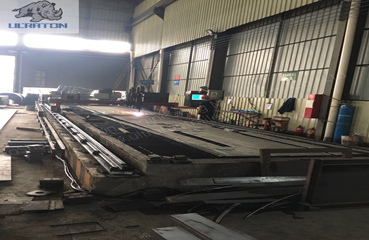

Space frame welded structure, which is formed by welding two I-shaped longitudinal beams and a plurality of beams (C-shaped channel steel).
Steel material we choose to use is high strength steel Q345.

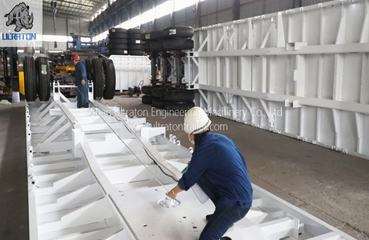

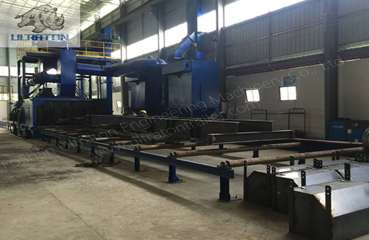

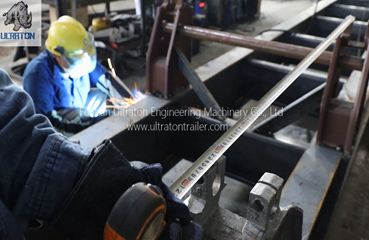

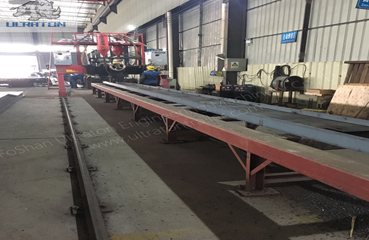

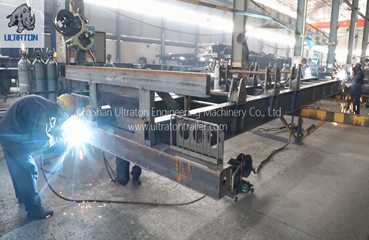

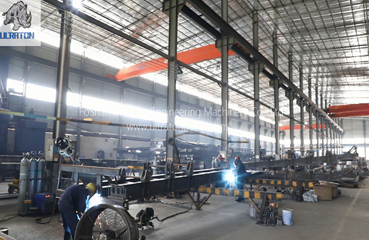

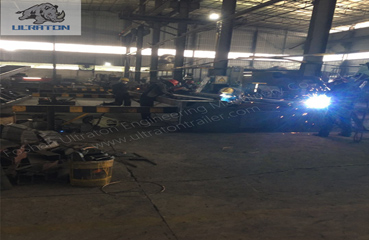

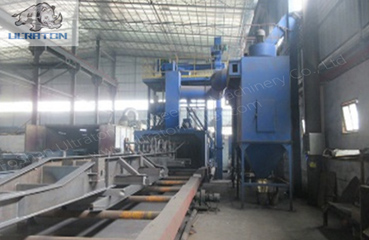

Whole body is welded by advanced automatic submerged-arc process and skilled technicians. Complete chassis shot blasting to clean rust and remove welding stress.

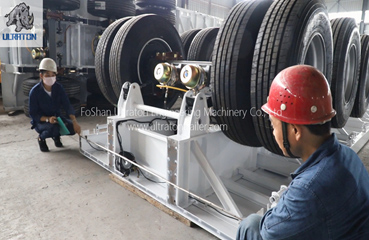

Equipped with 3 pieces of 13T German type or American type semi trailer axle; Optional for brands.
Mechanical suspension or bogie suspension for choice.
Other core components are of superior quality and famous brand. Details are outlined as below.
Advantage of 3 Axles 40 Ton Side Wall Semi Trailer
Distinct location and resource to get full range support on delivery and manufacturing at competitive cost
Scientific design, reasonable load sharing to transport specific goods
Professional and efficient arrangement on shipping
Skilled and experienced workmanship ensure outstanding quality
Complete and flexible service from our professional team
Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service
| Technical Parameter | 3 Axles 40 Ton Side Wall Semi Trailer |
| Tare Weight(KG) | 6300KG |
| Loading Capacity(KG) | 40000KG |

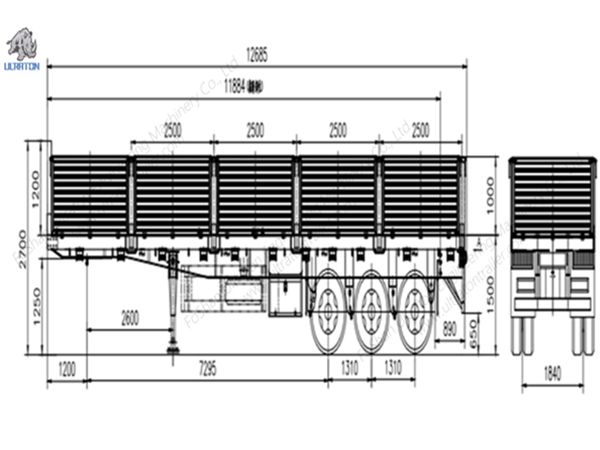

| Dimension(mm) | 13000*2500*2760 |
| Main Beam | The height of the beam is 500 mm, upper Flange is14mm, Lower Flange is 14mm,Web is 8mm. |
| Kingpin | 2''/ 3.5'',Welded/Bolt-In |
| Landing Gear | Standard 28Ton , FUWA Brand |
| Axle | Standard FUWA Brand / ULTRATON Brand Optional : BPW Brand or HuaJing Brand |
| Suspension | Mechanical Suspension/Air Suspension,Standard FUWA Brand/ULTRATON Brand Optional : BPW Brand or HuaJing Brand |
| Leaf Spring | Standard FUWA Brand/ULTRATON Brand 90mm*16*7 or 90*16*8 |
| Brake system | Dual Air Brake (Drum) System, With Inter-Locking Device.WABCO Relay Emergency Valve,OPTIONS: ABS. |
| Electrical System | 24 Volt LED Electrical System In Accordance To The Standard, With 7-Core Adaptor For Tractor. |
| Tire | 12.00R22.5 Tubeless,12 Units |
| Rim | 9.0*22.5,12 Units |
| Shot Blasting & Painting | Shot Blasting and Sanding Treatment . Two Coat Of Anti Corrosion Primer and Two Coat Of Finish Painting |
| Mud Guard | Fabricated Mud Guard 6 nos |
| Tool Box | 1 Standard (The Tool Box Size Can Be Tailored To Suit Your Needs) |
| Spare Tire Carrier | Equipped one sets per chassis without spare tire. |

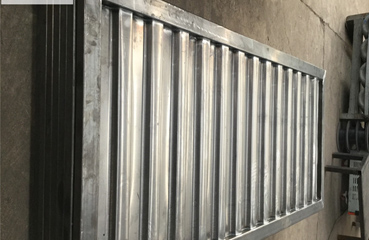

| Side Board | According To Customer's Requirement |
| Front Baffle | According To Customer's Requirement |
| We Can Build The Trailer According To Customer's Design And Requirement. | |
Application of 3 Axles 40 Ton Side Wall Semi Trailer
Ultraton's 3 axles 40T Side Wall Semi Trailer is especially appropriate for transport bag package grain, feed, vegetable etc.
