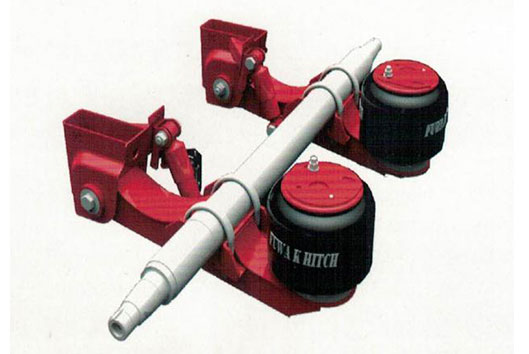

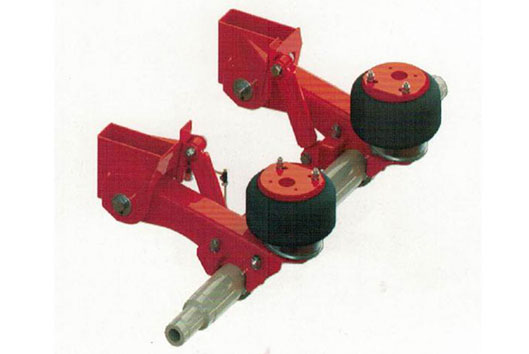

Overview of American Style Air Suspension Series

Heavy duty and extra durability designed
Mostly applicable for round beam trailer axle
Simpler structure welded by steel plate for guide arm
Superior quality and elastic air bag
Installation is optional for overslung and underslung for different need

Advantage of American Style Air Suspension Series

Mature technology and reasonable design ensure good quality and competitive cost
American Style Air Suspension Series uses air spring as the spring element, air as the elastic medium, and the air compressibility to achieve elastic operation, which greatly improves the suspension comfort and reaction sensitivity.
Elastic element makes less noise during working
2-3 times durable with longer life time than traditional mechanical suspension
Guide arm welded by steel plate makes lighter weight and lower in fuel consumption
Deflating the air bag by remote control, height sensor, control valve, etc. to change the height of the vehicle body, making loading and unloading or detaching more convenient
Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service

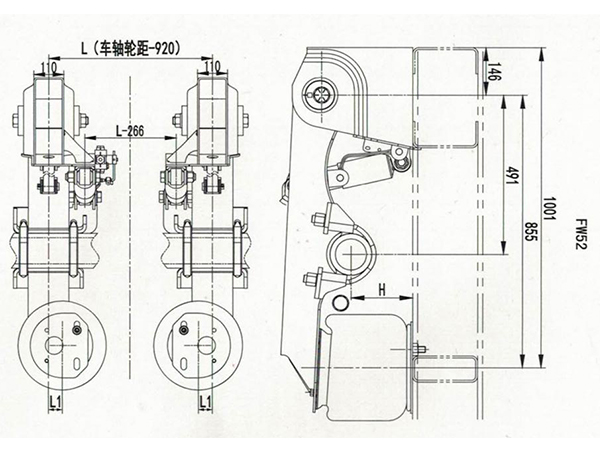

FW52 Type Air Suspension, USA Style(Positive Assembly)
Model	H (mm)	L1 (mm)	Wheelbase (mm)	Air Bag Spec(mm)	Axle Load (KG)
FW52-11/381-AR5	381	63.5	1220-1360	Ø343	11,000
FW52-11/406-AR5	406	63.5	1220-1360	Ø343	11,000
FW52-11/432-AR5	432	63.5	1220-1360	Ø343	11,000
FW52-11/483-AR5	483	63.5	1220-1360	Ø343	11,000
FW52-11/381-AR5	381	75	1220-1360	Ø381	11,000
FW52-11/406-AR5	406	75	1220-1360	Ø381	11,000
FW52-11/432-AR5	432	75	1220-1360	Ø381	11,000
FW52-11/483-AR5	483	75	1220-1360	Ø381	11,000

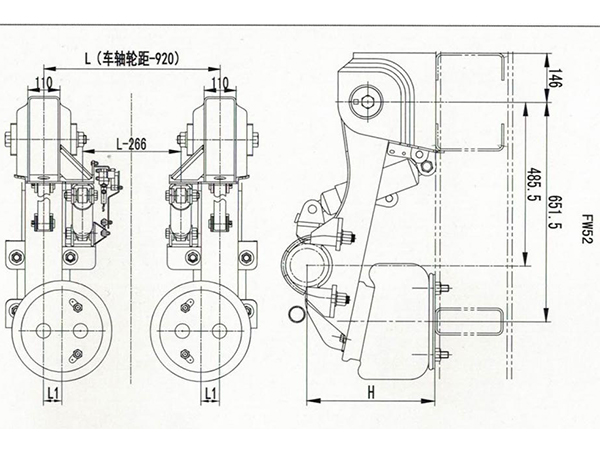

FW52 Type Air Suspension, USA Style(Reverse Assembly)
Model	H (mm)	L1 (mm)	Wheelbase (mm)	Air Bag Spec(mm)	Axle Load (KG)
FW52-11/305-BR5	305	51	1220-1360	Ø325	11,000
FW52-11/280-BR5	280	51	1220-1360	Ø325	11,000
FW52-11/254-BR5	254	51	1220-1360	Ø325	11,000
FW52-11/229-BR5	229	51	1220-1360	Ø325	11,000
FW52-11/203-BR5	203	51	1220-1360	Ø325	11,000
FW52-11/305-BR5	305	51	1220-1360	Ø348	11,000
FW52-11/280-BR5	280	51	1220-1360	Ø348	11,000
FW52-11/254-BR5	254	51	1220-1360	Ø348	11,000
FW52-11/229-BR5	229	51	1220-1360	Ø348	11,000
FW52-11/203-BR5	203	51	1220-1360	Ø348	11,000

Application of American Style Air Suspension Series

American Style Air Suspension is applicable on any Ultraton Semi Trailer as important part to improve ride comfort and flexibility of vehicle, reduce damage to cargo during transportation.

Other notes of American Style Air Suspension Series

Pre-sales Services

Communicating with customers, analyze their needs.
Providing professional technical solutions with drawing.
Offering customer quote in FOB or CFR etc .

Payment: 50% TT advance before production, 50%TT before shipment is preferred

Delivery:

We are long term partner with many famous shipping lines and forwarders i.e. COSCO, ONE, PIL, MSC, CMA, etc. We arrange

Provide best feasible and effective packing way and timely manner.
Arrange shipping space booking, customs clearance, etc.
Make an appointment for product inspection if required.
Prepare necessary documents for customs clearance.
Track delivery status until you receive the cargo.

Shipping: Sea/ Railway/ Road transportation subject to your location

Packing: CBU or SKD in seaworthy Export Standard
