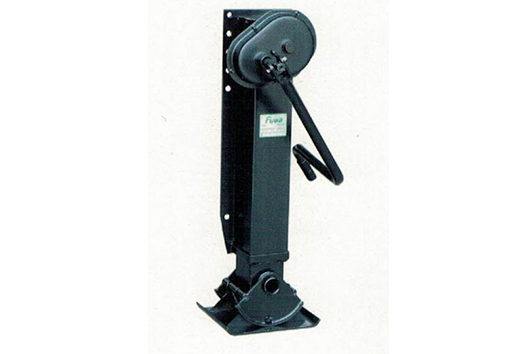

Overview of FUWA27 Landing Gear Series

Heavy duty and extra durability designed
Gearbox with low temperature premium chassis lube rated for service from -30°C to +120°C
Maintenance free feature with grease lubricant packed jack screw
High gear and low gear is optional for different speed
Wider backing mounting plate for greater load bearing capacity and extended life
Type A, G, S, R, T shoes available for different use
One side operation with crank
Design of mounting plate and crank is optional
FUWA landing gears meet Safety Regulations for commercial vehicles

Advantage of FUWA27 Landing Gear Series

Mature technology and workmanship offers more stability, greater capacity and longer service life
Strictly selected material and parts protect high performance.
Complete quality control procedure can ensure good quality
Various choice of shoes can meet different condition need
Fast response and flexible service from our professional team
Distinct location to get full range support on delivery and manufacturing
Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service

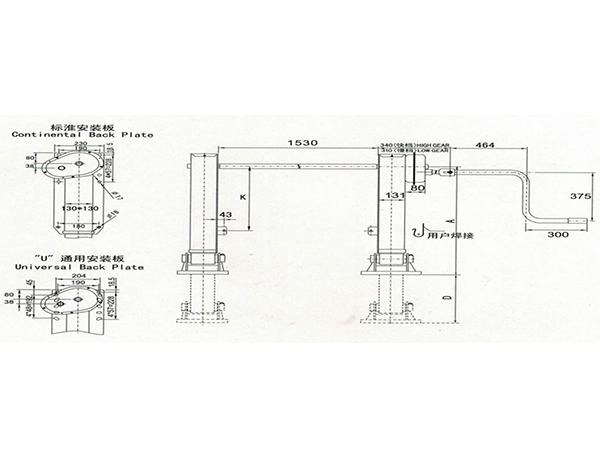

One Side Operation Landing Gear Assy
Model	Types Of Shoes	Lift D (mm)	Height A (mm)	k
FW270001A	A	430	823	526
FW270001G	G	430	779	526
FW270001R	R	430	806	526
FW270001S	S	430	731	526
FW270001T	T	430	803	526
FW270002A	A	480	873	576
FW270002G	G	480	829	576
FW270002R	R	480	856	576
FW270002S	S	480	881	576
FW270002T	T	480	853	576
Standard Specifications Capacity 28,000KG/Pair Static Load 80,000KG/Pair Weight 105KG Crank Force Low Gear 1mm Per Turn(mm/r) Of Handle High Gear 11mm Per Turn(mm/r) Of Handle One Side Operation Crank Force 28T-35.5KG

FW27 Landing Gear Series is applicable on any Ultraton Semi Trailer
