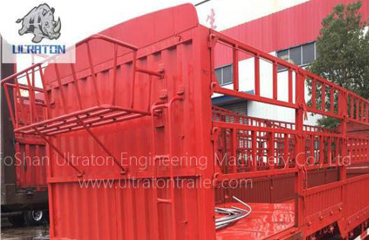

3 Axles 50 Ton Fence Semi Trailer
If 40T loading capacity cannot meet your need, we will recommend Ultraton's 3 Axles 50T Fence Semi Trailer which is equipped with 3 pieces of 16T semi-trailer axles. That could be a good solution to transport dry goods and bulk cargo.
- Overview
- Advantage
- Application
- Other notes

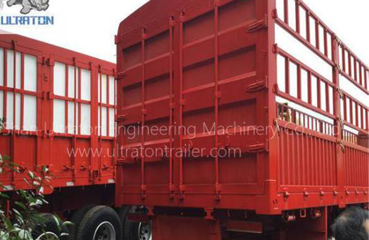

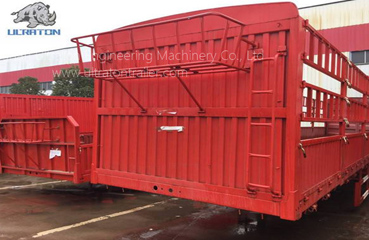

Overview of 3 Axles 50 Ton Fence Semi Trailer

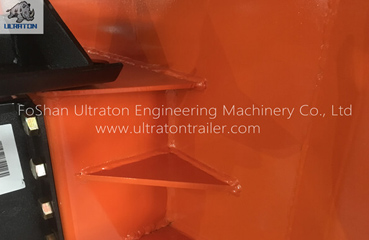

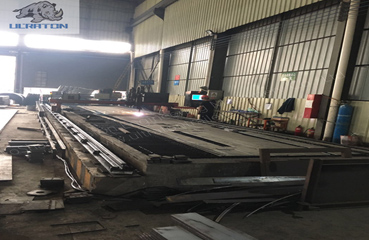

Space frame welded structure, which is formed by welding two I-shaped longitudinal beams and a plurality of beams (C-shaped channel steel)..
Steel material we choose to use is high strength steel Q345.

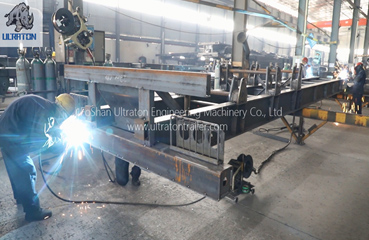

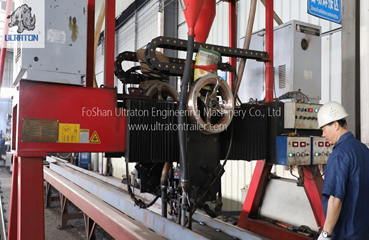

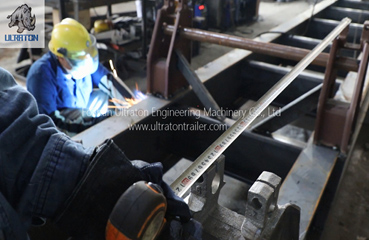

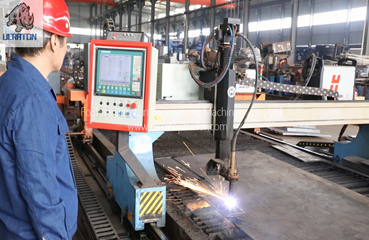

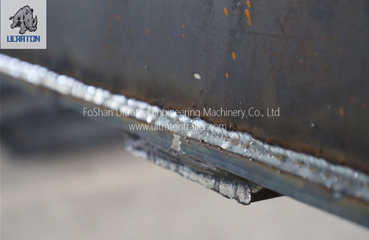

Whole body is welded by advanced automatic submerged-arc process and skilled technicians. Complete chassis shot blasting to clean rust and remove welding stress.
Superior quality and famous brand we use on specific different trailer parts. Details are outlined as below.
Advantage of 3 Axles 50 Ton Fence Semi Trailer
Mature technology, could be produced in large quantity at competitive cost
Practical design with high strength to transport specific goods. Curtain as rain shade or prevention from spilling out could be added.
Perfect appearance with our good workmanship
Fast response and flexible service from our professional team
Distinct location to get full range support on delivery and manufacturing
Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service
| Technical Parameter | 3 Axles 50 Ton Fence Semi Trailer |
| Tare Weight(KG) | 7000KG |
| Loading Capacity(KG) | 50000KG |

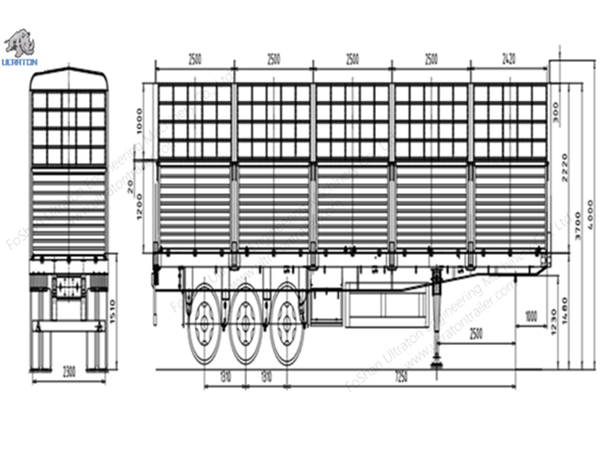

| Dimension(mm) | 13000*2500*4000 |
| Main Beam | The height of the beam is 500 mm, upper Flange is14mm, Lower Flange is 14mm, Web is 8mm. |
| Kingpin | 2'' / 3.5'' ,Welded/Bolt-In |
| Landing Gear | Standard 28Ton , FUWA Brand |
| Axle | Standard FUWA Brand / ULTRATON Brand Optional: BPW Brand or HuaJing Brand |
| Suspension | Mechanical Suspension/Air Suspension, Standard FUWA Brand/ULTRATON Brand Optional: BPW Brand or HuaJing Brand |
| Leaf Spring | Standard FUWA Brand/ULTRATON Brand 90mm*16*7 or 90*16*8 |
| Brake system | Dual Air Brake (Drum) System, With Inter-Locking Device.WABCO Relay Emergency Valve, OPTIONS: ABS. |
| Electrical System | 24 Volt LED Electrical System In Accordance To The Standard, With 7-Core Adaptor For Tractor. |
| Tire | 12.00R22.5 Tubeless,12 Units |
| Rim | 9.0*22.5,12 Units |
| Shot Blasting & Painting | Shot Blasting and Sanding Treatment. Two Coat Of Anti Corrosion Primer and Two Coat Of Finish Painting |
| Mud Guard | Fabricated Mud Guard 6 nos |
| Tool Box | 1 Standard (The Tool Box Size Can Be Tailored To Suit Your Needs) |
| Spare Tire Carrier | Equipped one sets per chassis without spare tire. |
| Side Board | According To Customer's Requirement |
| Front Baffle | According To Customer's Requirement |
| Fence | According To Customer's Requirement |
| We Can Build The Trailer According To Customer's Design And Requirement. | |
Application of 3 Axles 50 Ton Fence Semi Trailer
Ultraton's 3 axles 50T Semi Trailer is especially appropriate for transport livestock, bottle beverage, and general stuff on the road, meadow, pasturing area.
