2 Axles 40ft Skeletal Container Transport Semi Truck Trailer
As an upgraded model, it is commonly used and basic design to transport a 40ft container. Extendable Chassis and Multipurpose Container Trailer can be modified according to the customer's requirement.
- Overview
- Advantage
- Application
- Other notes

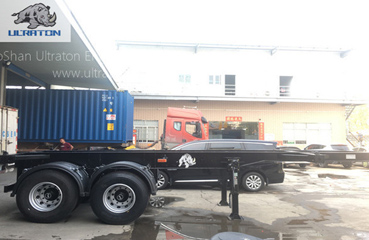

Overview of 2 Axles 40ft Skeletal Container Transport Semi Truck Trailer
Ultraton has 40 foot container trailer for sale.
16 manganese high strength steel is used in heavy-duty and extra durability designed for the main I beam.
Flange and web width & thickness could be customized
Optimized design with advanced computer-aided design software, finite element analysis of the frame according to vehicle load quality requirements

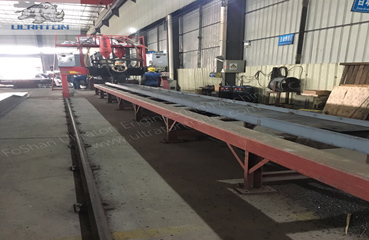

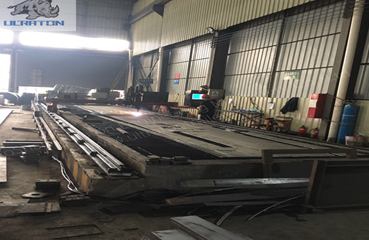

Specific auto hydraulic I beam straightening machine for more accuracy

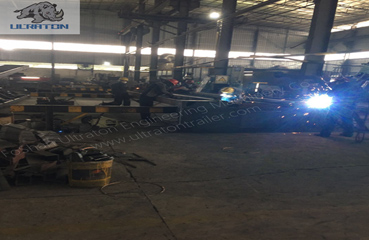

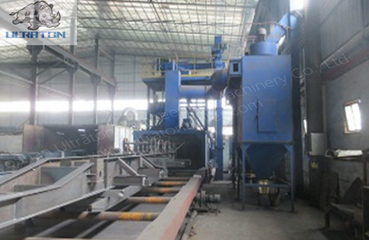

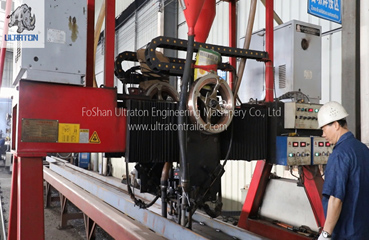

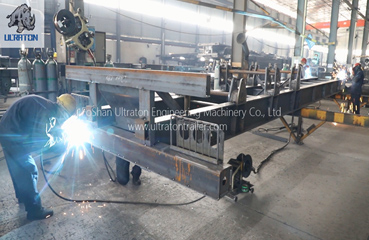

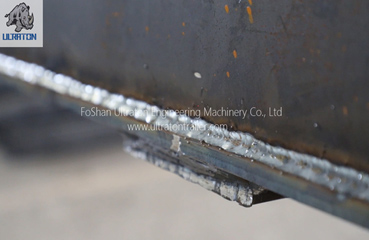

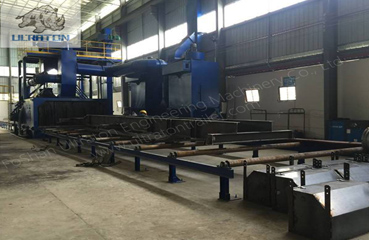

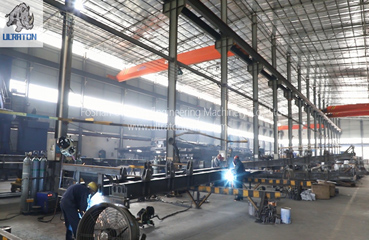

Welded by automatic submerged-arc process and skilled technicians. Complete chassis shot blasting to clean rust and remove welding stress

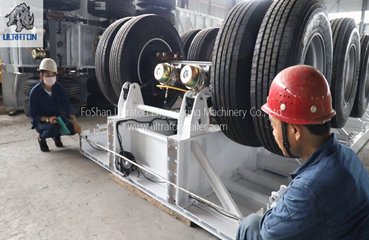

Axles could be optional for German type or American type

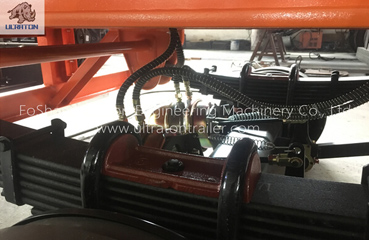

The suspension is optional for mechanical suspension, air suspension
Other core components are of superior quality and famous brands. Details are outlined below.
Advantage of 2 Axles 40ft Skeletal Container Transport Semi Truck Trailer
Mature technology, could be produced in large quantity at competitive cost
Lighter weight with high strength to transport container
Packing solution in CKD/ SKD/CBU is optional according to different project
Advanced manufacturing equipment and workmanship to ensure outstanding performance
Complete and flexible service from our professional team
Distinct location to get full range support on delivery and manufacturing
Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service
| Technical Parameter | 2 Axles 40ft Skeleton Container Transport Semi Truck Trailer |
| Tare Weight(KG) | 3800KG |
| Loading Capacity(KG) | 40000KG |

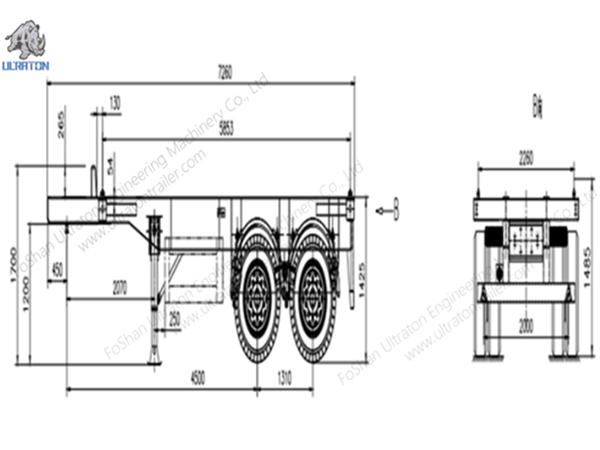

| Dimension(mm) | 12400*2480*1500 |
| Main Beam | The height of the beam is 500 mm, upper Flange is14mm, Lower Flange is 14mm,Web is 8mm. |
| Kingpin | 2''/ 3.5'',Welded/Bolt-In |

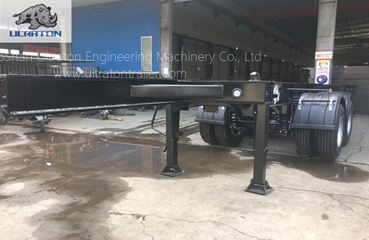

| Landing Gear | Standard 28Ton , FUWA Brand |
| Axle | Standard FUWA Brand / ULTRATON Brand |
| Optional : BPW Brand or HuaJing Brand | |

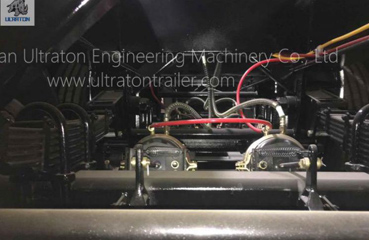

| Suspension | Mechanical Suspension/Air Suspension,Standard FUWA Brand/ULTRATON Brand |
| Optional : BPW Brand or HuaJing Brand | |
| Leaf Spring | Standard FUWA Brand/ULTRATON Brand |
| 90mm*16*7 or 90*16*8 | |
| Brake system | Dual Air Brake (Drum) System, With Inter-Locking Device.WABCO Relay |
| Emergency Valve,OPTIONS: ABS. | |
| Electrical System | 24 Volt LED Electrical System In Accordance To The Standard, With 7-Core Adaptor For Tractor. |
| Tire | 12.00R22.5 Tubeless,8 Units |
| Rim | 9.0*22.5,8 Units |

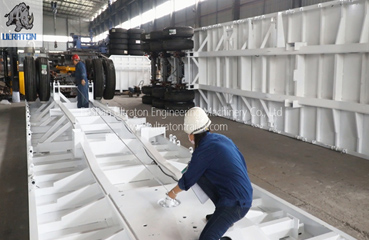

| Shot Blasting & Painting | Shot Blasting and Sanding Treatment . Two Coat Of Anti Corrosion Primer and |
| Two Coat Of Finish Painting | |

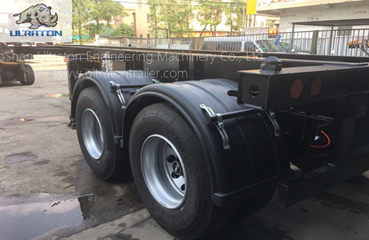

| Mud Guard | Fabricated Mud Guard 4 nos |
| Tool Box | 1 Standard (The Tool Box Size Can Be Tailored To Suit Your Needs) |
| Container Locks | 4/8/12 Screw type |
| Spare Tire Carrier | Equipped one sets per chassis without spare tire. |
| We Can Build The Trailer According To Customer’s Design And Requirement. | |
Application of 2 Axles 40ft Skeletal Container Transport Semi Truck Trailer
Ultraton's 2 axles 40 foot Semi Trailer could be used to transport standard size of container in ports or from site to site on road. Suitable for logistic company, terminal ports, shipping lines, forwarders, truck manufacturer
