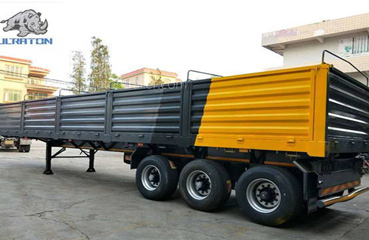

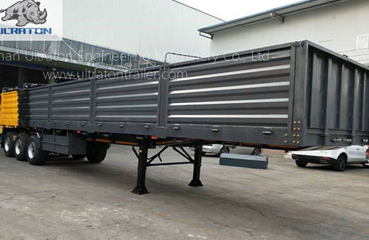

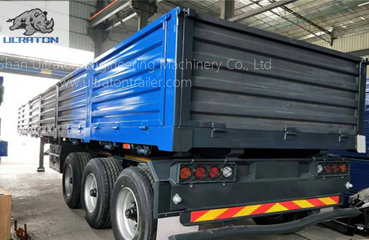

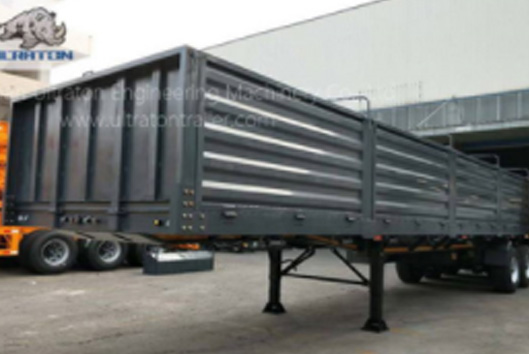

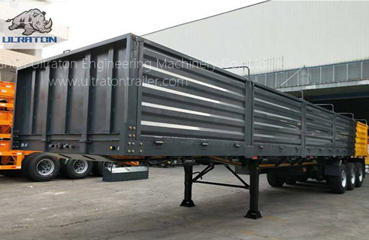

3 Axles 50 Ton Side Wall Semi Trailer
If 40T loading capacity cannot meet your need, we will recommend Ultraton's 3 Axles 50T Side Wall Semi Trailer which is equipped with 3 pieces of 16T semi-trailer axles. Ultraton's 3 Axles 50T Side Wall Semi Trailer is your good partner to transport dry goods and bulk cargo on road. Different design on stake and board can be modified according to customer's requirement.
- Overview
- Advantage
- Application
- Other notes
Overview of 3 Axles 50 Ton Side Wall Semi Trailer
16 manganese high strength steel is used in heavy duty and extra durability designed for main I beam.
Flange and web width & thickness could be customized
Optimized design with advanced computer-aided design software, finite element analysis of the frame according to vehicle load quality requirements

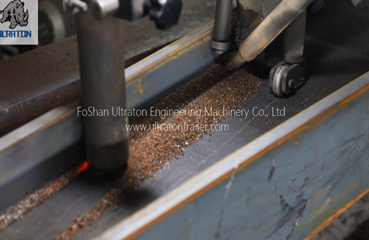

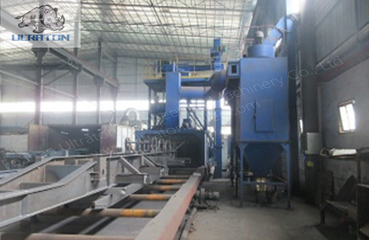

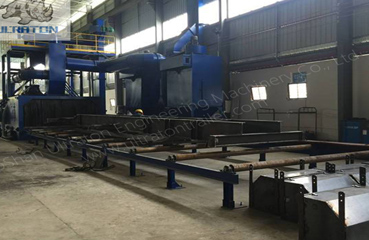

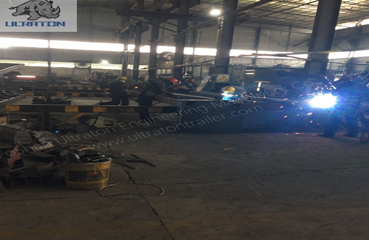

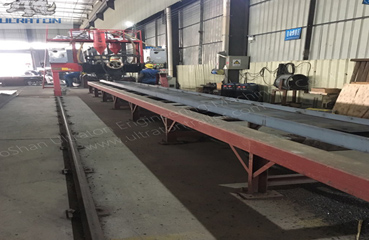

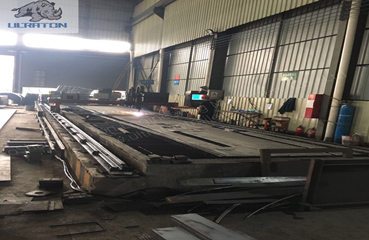

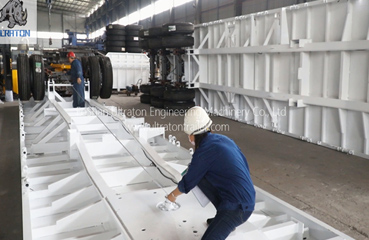

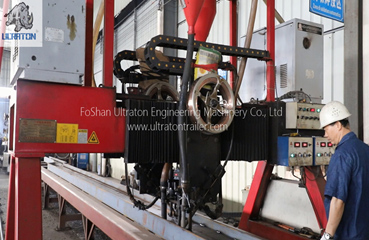

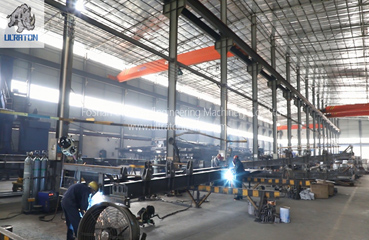

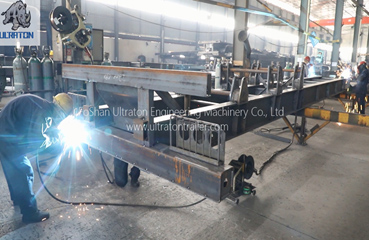

Welded by automatic submerged-arc process and skilled technicians. Complete chassis shot blasting to clean rust and remove welding stress

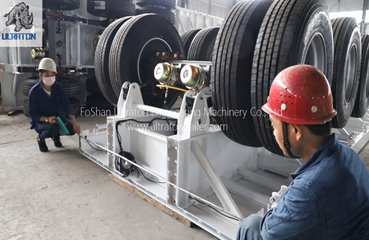

Equipped with 3 pieces of 16T German type or American type semi trailer axle; Optional for brands
Mechanical suspension or air suspension for choice
Other core components are of superior quality and famous brand. Details are outlined as below.
Advantage of 3 Axles 50 Ton Side Wall Semi Trailer
Distinct location and resource to get full range support on delivery and manufacturing at competitive cost
Scientific design, reasonable load sharing to transport specific goods
Efficient packing solution is available
Skilled and experienced workmanship ensure outstanding quality
Complete and flexible service from our professional team
Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service
| Technical Parameter | 3 Axles 50 Ton Side Wall Semi Trailer |
| Tare Weight(KG) | 6300KG |
| Loading Capacity(KG) | 50000KG |

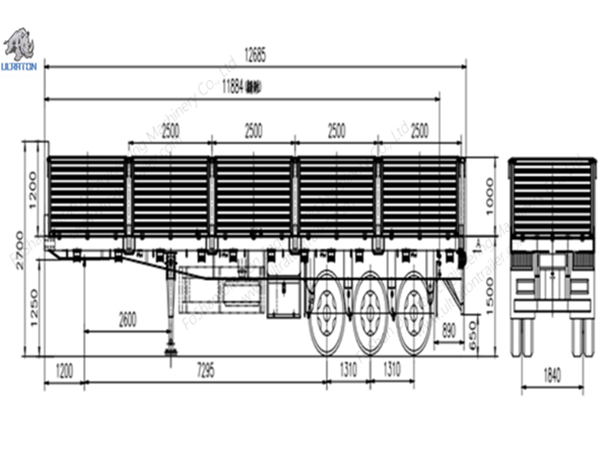

| Dimension(mm) | 13000*2500*2760 |
| Main Beam | The height of the beam is 500 mm, upper Flange is14mm, Lower Flange is 14mm,Web is 8mm. |
| Kingpin | 2'' / 3.5'' ,Welded/Bolt-In |
| Landing Gear | Standard 28Ton , FUWA Brand |

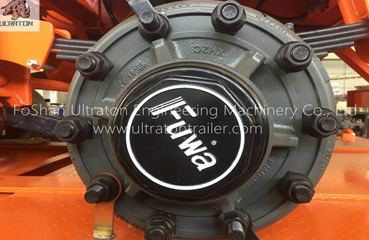

| Axle | Standard FUWA Brand / ULTRATON Brand Optional : BPW Brand or HuaJing Brand |
| Suspension | Mechanical Suspension/Air Suspension,Standard FUWA Brand/ULTRATON Brand Optional : BPW Brand or HuaJing Brand |
| Leaf Spring | Standard FUWA Brand/ULTRATON Brand 90mm*16*7 or 90*16*8 |
| Brake system | Dual Air Brake (Drum) System, With Inter-Locking Device.WABCO Relay |
| Emergency Valve, OPTIONS: ABS. | |
| Electrical System | 24 Volt LED Electrical System In Accordance To The Standard, With 7-Core Adaptor For Tractor. |
| Tire | 12.00R22.5 Tubeless,12 Units |
| Rim | 9.0*22.5,12 Units |
| Shot Blasting & Painting | Shot Blasting and Sanding Treatment. Two Coat Of Anti Corrosion Primer and Two Coat Of Finish Painting |
| Mud Guard | Fabricated Mud Guard 6 nos |
| Tool Box | 1 Standard (The Tool Box Size Can Be Tailored To Suit Your Needs) |
| Spare Tire Carrier | Equipped one sets per chassis without spare tire. |
| Side Board | According To Customer's Requirement |
| Front Baffle | According To Customer's Requirement |
| We Can Build The Trailer According To Customer's Design And Requirement. | |
Application of 3 Axles 50 Ton Side Wall Semi Trailer
Ultraton's 3 axles 50T Side Wall Semi Trailer is especially appropriate for transport bag package grain, feed, vegetable etc..
