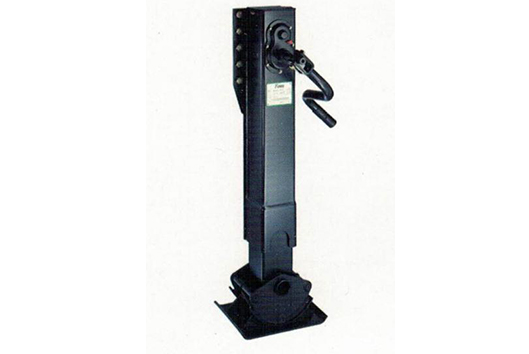

FW37 Landing Gear Series
FW37 Landing Gear Series is a device with capacity 28T per pair used to support the front load of the Semi Trailer and lift the height of the front of the Semi Trailer through the hand-driven mechanism so as to facilitate the connection and suspension of the tractor.
- Overview
- Advantage
- Application
- Other notes
Overview of FW37 Landing Gear Series
Lightweight and durability designed
Advanced gearbox with low temperature premium chassis lube rated for service from -30°C to +120°C
Maintenance free feature with grease lubricant packed jack screw
Built-in type gear box brings nice and neat appearance.
Widen and strengthen backing mounting plate is optional for greater load bearing capacity and extended life
Type A, G, S, R, T shoes available for different use
One side operation with crank
Design of crank is optional
Longer lifting distance is optional to meet different need
Meet Safety Regulations for commercial vehicles
Advantage of FW37 Landing Gear Series
Mature technology and workmanship offers more stability, greater capacity and longer service life
Strictly selected material and parts protect high performance.
Complete quality control procedure can ensure good quality
Various choice of backing mounting plate and shoes can meet different condition need
Fast response and flexible service from our professional team
Distinct location to get full range support on delivery and manufacturing
Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service

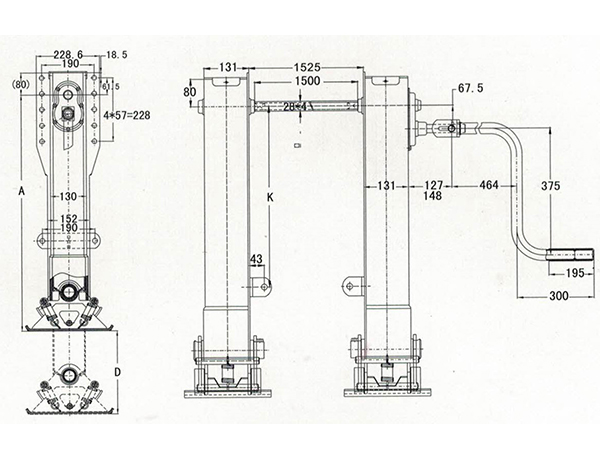

One Side Operation Landing Gear Assy | ||||
Model | Types Of Shoes | Lift D (mm) | Height A (mm) | k |
FW3722A | A | 560 | 937 | 630 |
FW3722G | G | 560 | 893 | 630 |
FW3722R | R | 560 | 920 | 630 |
FW3722S | S | 560 | 945 | 630 |
FW3722T | T | 560 | 917 | 630 |
FW3722LT | LT | 560 | 856 | 630 |
FW3721A | A | 520 | 897 | 580 |
FW3721G | G | 520 | 853 | 580 |
FW3721R | R | 520 | 880 | 580 |
FW3721S | S | 520 | 905 | 580 |
FW3721T | T | 520 | 877 | 580 |
FW3721LT | LT | 520 | 816 | 580 |
FW3719A | A | 470 | 847 | 530 |
FW3719G | G | 470 | 803 | 530 |
FW3719R | R | 470 | 830 | 530 |
FW3719S | S | 470 | 855 | 530 |
FW3719T | T | 470 | 827 | 530 |
FW3719LT | LT | 470 | 766 | 530 |
FW3717A | A | 430 | 807 | 480 |
FW3717G | G | 430 | 763 | 480 |
FW3717R | R | 430 | 790 | 480 |
FW3717S | S | 430 | 815 | 480 |
FW3717T | T | 430 | 787 | 480 |
FW3717LT | LT | 430 | 726 | 480 |
FW3716A | A | 400 | 777 | 430 |
FW3716G | G | 400 | 733 | 430 |
FW3716R | R | 400 | 760 | 430 |
FW3716S | S | 400 | 785 | 430 |
FW3716T | T | 400 | 757 | 430 |
FW3716LT | LT | 400 | 696 | 430 |
FW3714A | A | 350 | 727 | 380 |
FW3714G | G | 350 | 683 | 380 |
FW3714R | R | 350 | 710 | 380 |
FW3714S | S | 350 | 735 | 380 |
FW3714T | T | 350 | 707 | 380 |
FW3714LT | LT | 350 | 646 | 380 |
Standard Specifications Capacity 28,000KG/Pair Static Load 60,000KG/Pair Weight 93KG Crank Force Low Gear 0.95mm Per Turn(mm/r) Of Handle High Gear 8.5mm Per Turn(mm/r) Of Handle One Side Operation Crank Force 210N | ||||
Application of FW37 Landing Gear Series
FW37 Landing Gear Series is applicable on any Ultraton Semi Trailer.
